HTP DIN 43650 Form A Circuit Module, 24V LED, MOV Surge Suppression

HTP DIN Valve Connector 43650 Form A Circuit Module
HTP DIN 43650 Form A Circuit Module, 24V LED, MOV Surge Suppression

Alternative Views:
Price: $9.37
MFG P/N: AG1N02VL1
MFG: HTP
Ships From: Eastlake, OH
Weight (lbs): 0.15

Quantity in Stock :66


Availability: In Stock
Product Code: ASA24
Qty:


Description

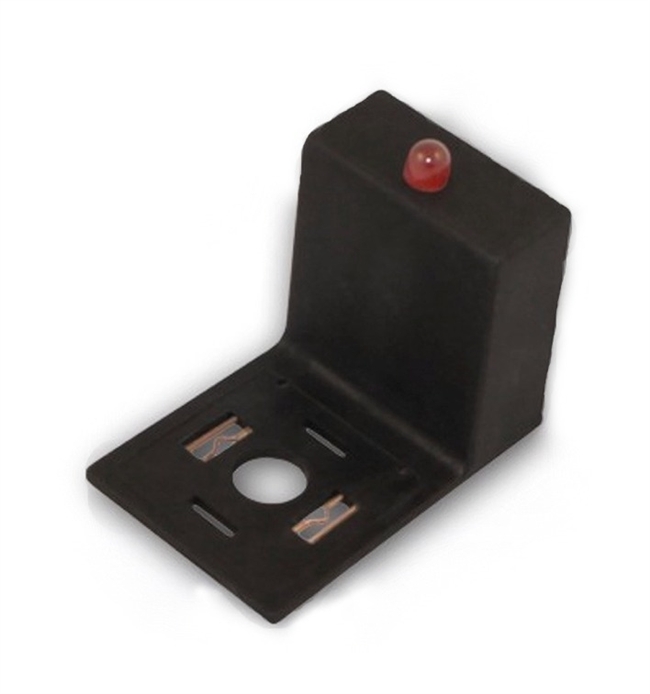

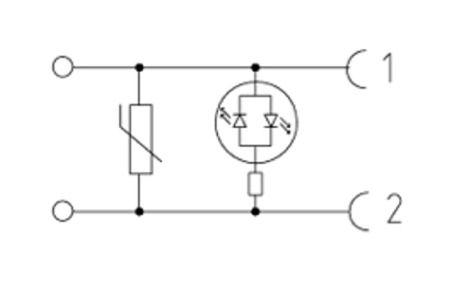

The HTP AG1N02VL1 (Order code: ASA24) sandwich adapter / circuit module is made for DIN 43650 Form A, 2 + ground, non-circuited connectors with 18mm pin spacing. It features a red 24V AC/DC LED indicator plus MOV surge suppression. When attached, it can create a circuit for a non-circuited DIN connector. The LED indicator confirms the voltage supply while the MOV gives overvoltage protection to the source and load. Note: See images for drawings


Specifications

  • Housing Color- Black
  • Contact Spacing- 18mm
  • Circuit Type- LED + MOV Surge Suppression
  • Number of Poles- 2 Poles + Ground
  • Voltage- 24V AC/DC

HTP Form A Din Connector Circuit Module
