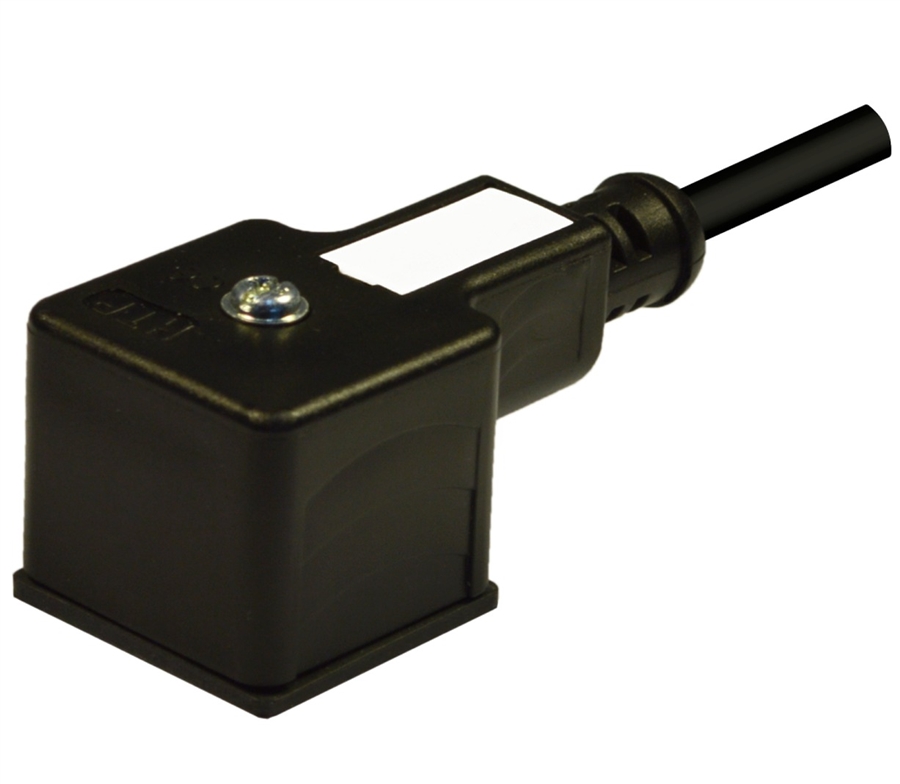

The HTP DIN 43650 / ISO 4400 (EN 175301-803) Form A molded cable assembly (Order code: OM550ZRB2P3M) features 2 poles + 2 grounds, 18 mm Pin Spacing and 3 meters of cable. The cable is type HO5VVF PVC 18 awg 3 conductor. The ground location is at 12 & 6 O'clock for easy rotation of cable exit on valve. Includes center screw and integrated NBR gasket.

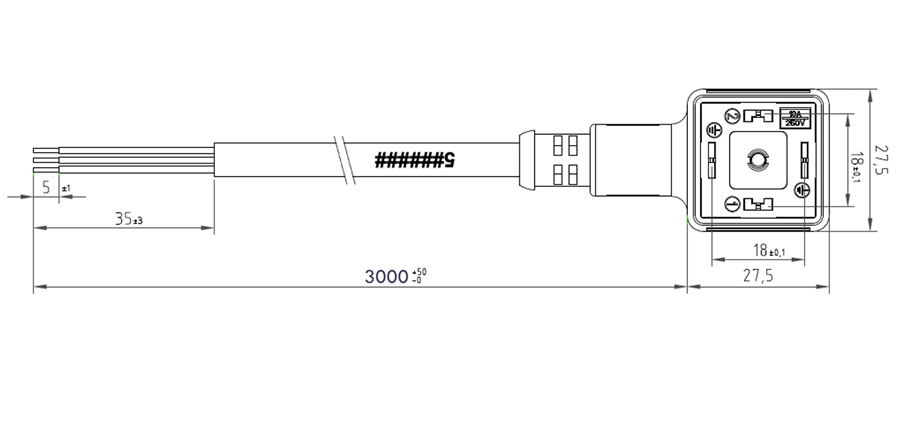

Note: See images for drawings
Wiring Code (2 poles + 2 ground)
Pin#1 = Brown
Pin#2 = Blue
Ground = Yellow/Green (jumper'd from the 12 & 6 o'clock position)
Specifications
- Housing & Cable Color- Black
- Cable Length & Type- 3 Meter (9.84') PVC H05VVF
- Contact Spacing- 18 mm
- Number of Poles- 2 Poles + 2 Grounds (Ground jumpered at the 12 & 6 oclock positions)
- Conductor Size- 0.75 mm 2
- Cable Diameter- 6.8 mm (0.27")
- Fixing Screw- M3 x 25 mm
- Gasket- NBR
- Rated Voltage- 250V AC / 300V DC
- Operating Current- 10A
- Nominal Current- 6A
- Protection Class- IP 67
Can be compatible with MPM/Woodhead E152N3N30011 (housing height 23 mm) and Shield CA11 02A00 535 3000 0 (Housing height min 22 mm, max 28 mm), and CNE MA134000PG05300 (Housing height 24 mm)
We also do custom DIN connector assemblies! Please contact us at 800-966-2345 or [email protected] for more information.
3 Meter Molded HTP Form A DIN Connector
