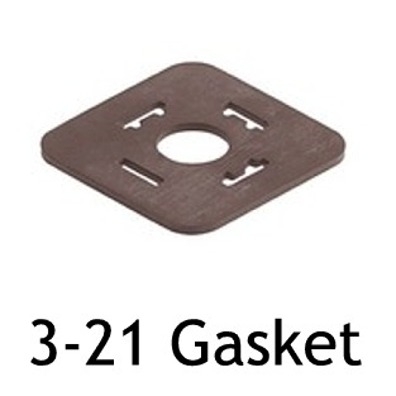

The Hirschmann Form A DIN 43650 (EN 175301-803) PG 11 with 24V DC LED indicator & MOV suppression (P/N: GDMZRC211183210) accommodates 4.5 to 11 mm cable and has 2 Poles + ground with 18mm pin spacing. The 24V DC LED indicator confirms the voltage supply while the MOV gives overvoltage protection to the source and load. Hardwired. Type of connection: Screw w/ conductor protection. Includes connector, EPDM flat gasket, & center screw.

The Form A PG 11 solenoid valve connector is a durable right angled connector that is dust and splash protected (IEC 60529 - IP 65)

• vibration-proof locking using a central center screw.
• patent-protected combination terminal for connecting flex wire with wire end ferrules or fixture of fork-type cable shoes/eye directly under the screw head.
• for use with hydraulic, pneumatic, electromagnetic actuators; e.g. solenoid valves, pressure sensors, flow indicators.

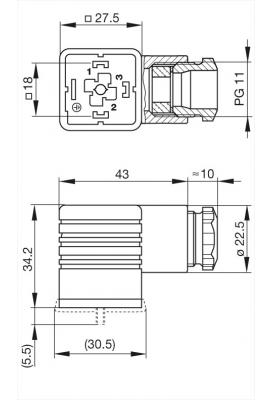

• Note: See images for drawings

Specifications

• Housing Color- Clear
• Type of Contact- Screw w/ conductor protection
• Contact Spacing- 18 mm
• Number of Poles- 2 Poles + Ground
• Housing Dimensions- 34.2mm H x 53mm L x 27.5mm W
• Cable Entry- PG 11 (4.5 to 11mm Cable OD)
• Maximum Conductor Size- 16 awg
• Fixing Screw- M3 x 37 mm
• Gasket- EPDM Flat
• Operating Temperature- -40 F to +257 F
• Approvals- CE, ROHS
• Protection Class- IP 65
• Circuit Type- 24V DC LED Indicator + MOV Suppression
