Hirschmann Din 43650 Form A, Rectified with Varistor - NBR Profile

Din 43650 Rectified Connector
Hirschmann Din 43650 Form A, Rectified with Varistor - NBR Profile

Alternative Views:
Price: $11.80
Note: Please call or email [email protected] for alternatives
MFG P/N: GDMLRB21103160
MFG: Hirschmann / Belden
Weight (lbs): 0.15

Quantity in Stock :54


Availability: In Stock
Product Code: GDMLRB21103160
Qty:


Description

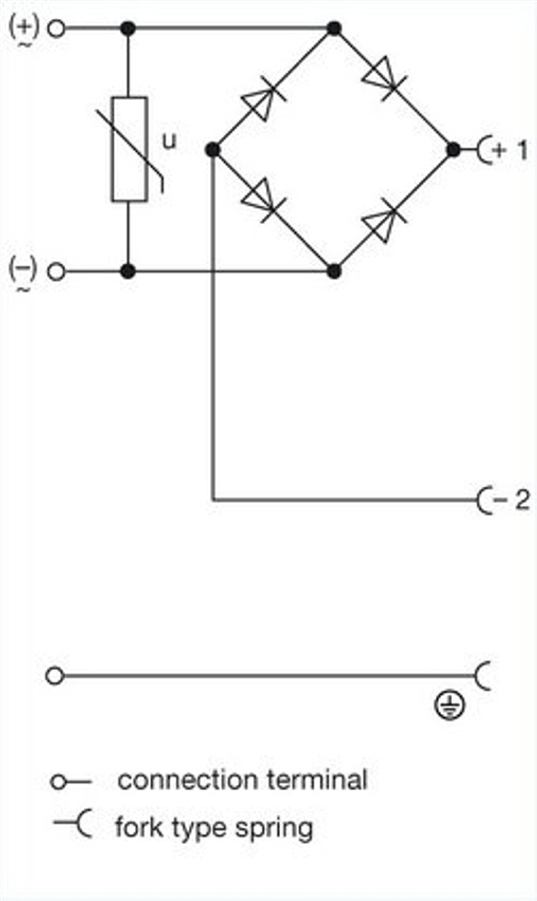

Hirschmann Din 43650 / ISO 4400 EN 175301-803 Form A (P/N GDMLRB21103160) is a bridge-type rectifier with protective circuit (varistor). It accommodates 4.5 to 11 mm cable and has 2 Poles + ground. Includes connector, NBR profile gasket, & center screw. Note: See images for drawings

Specifications

  • Housing Color- Black
  • Type of Contact- Forked Spring
  • Number of Poles- 2 Pole + Ground
  • Rated Voltage- 250 V AC/DC
  • Rated Current- 2 Amps AC / 1 Amp DC
  • Suitable Cable Size- 4.5 mm to 11 mm
  • Contact Material- Sn
  • Housing Material- PA
  • Gasket- NBR Profile
  • Operating Temperature- -40 C to + 90 C
  • Type of Termination- Screw
  • Protection Class- IP 65

Hirschmann Form A Rectified
