Mencom Low Profile Panel Interface Connector, Duplex Outlet, Single Size Housing

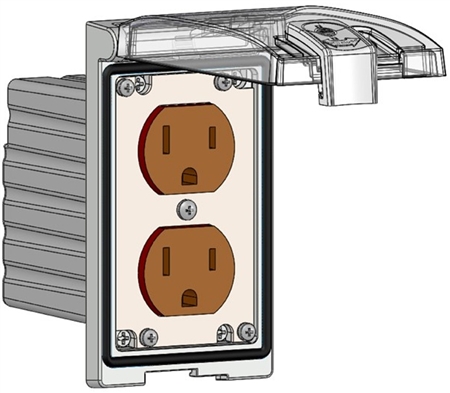

Mencom LP1-DP Low Profile Programming Interface
Mencom LP1-DP Low Profile Panel Interface Connector, Duplex Outlet, Single Size Housing

Alternative Views:
Price: $97.01
Note: Delivery: Up to 7-10 business days
MFG P/N: LP1-DP
MFG: Mencom
Weight (lbs): 0.8



Availability: In Stock
Product Code: LP1-DP
Qty:


Description


The Mencom LP1-DP panel interface connector (PIC) features a 120V duplex receptacle in a single cover housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70
  • Volts- 125V
  • Amps- 15Amps
  • SCCR- 10kA
  • Housing- Single Cover Low Profile Housing
  • Dimensions- 2.57" Width x 4.6" Height x 3.12" Depth
  • Power Ports- 120V Duplex Receptacle
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)
  • Panel Thickness- 5mm max.
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
