Deca Screw Clamp DIN Rail Ground Terminal Block, 6-16 AWG

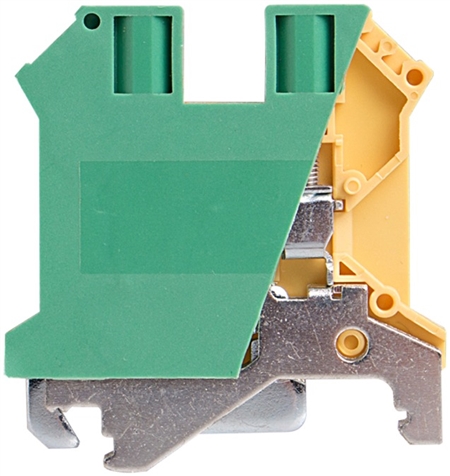

Deca CPE10N Screw Clamp DIN Rail Ground Terminal Block
Deca CPE10N Screw Clamp DIN Rail Ground Terminal Block, 6-16 AWG

Alternative Views:
Price: $3.87
MFG P/N: CPE10N
MFG: Deca
Weight (lbs): 0.04

Quantity in Stock :217


Availability: In Stock
Product Code: CPE10N
Qty:

Description


The Deca CPE10N screw clamp DIN rail ground terminal block accommodates 6-16 AWG wire. This 2 pole terminal block can be easily mounted on any standard 35 mm DIN Rail. It is constructed from materials that resist flame, shock, and vibration. It features a strong contact force, with low contact resistance, and the contact points are corrosion proof. Ground type terminal blocks send the ground to the DIN rail. UL & CUL Recognized.

Specifications

  • Housing Material- Polyamide 6.6, UL94-V0
  • Housing Color- Green/Yellow
  • Dimensions- 47.5 x 42.5 x 10mm
  • Wire Size- 6-16 AWG (0.5-10mm2)
  • Torque- 18 lb/in
  • Clamping Screw- M4
  • Stripping Length- 12-16mm
  • Approvals- C UR US

Deca CPE10N 6-16 AWG DIN Rail Ground Terminal Block
