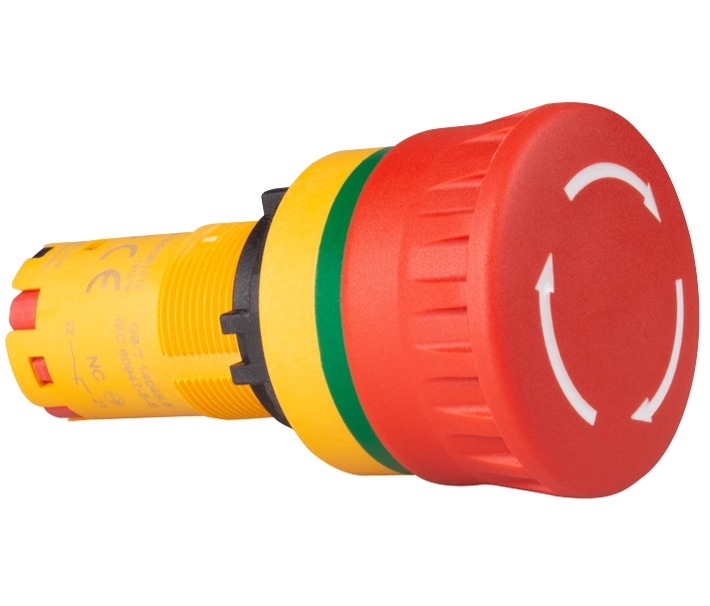

Deca 22 mm Unibody Emergency Stop Switch, 2NC, Pull/Turn Release

Deca CP2E-BVE02R 22 mm Push Button, Emergency Stop, 2NC, Pull/Turn Release
Deca CP2E-BVE02R 22 mm Unibody Emergency Stop Switch, 2NC, Pull/Turn Release

Alternative Views:
Price: $13.90
MFG P/N: CP2E-BVE02R
MFG: Deca
Weight (lbs): 0.1

Quantity in Stock :127


Availability: In Stock
Product Code: CP2E-BVE02R
Qty:

Description


The Deca CP2E-BVE02R unibody emergency stop switch has a 40 mm head with a 2NC contact arrangement. Bezel hole: 34.6 mm. It has a rated insulation voltage of 400V and rated terminal current of 8A. Not illuminated. Front operator rated IP 66 (total dust protection and protection from powerful water jets in any direction). Also called an E-Stop switch, it is pushed to lock and needs to be pulled out and turned to reset.

  • Wire Push-In feature saves on installation time
  • Spring clamps provide greater force to hold the wire in place
  • Two wiring holes per contact
  • Contact blocks are separated in the center for better insulation
  • Works with solid or stranded wire, or European terminal wiring
  • Unibody housing saves space
  • Mounting panel thickness: 0.8 - 12 mm

Specifications

  • Bezel- Plastic
  • Bezel Hole- 34.6 mm (1.36")
  • Dimensions- 75 mm Length x 40 mm Diameter (2.95" x 1.57")
  • Type- Pull/Turn to Release
  • Contact Arrangement- 2NC (Normally Closed)
  • Insulation Resistance- 100 MOhm above (500V DC High Resistance Meter)
  • Vibration Resistance- Operation Extremes: 10-500Hz, Amplitude: 0.35mm, 50 m/s2 Damage Limits: 10-500Hz, Amplitude: 0.35mm, 50 m/s2
  • Shock Resistance- Operation Extremes: 150m/s2 Damage Limits: 1,000m/s2
  • Dielectric Strength- 2,000V AC 1 min
  • Operating Temperature- -25 C to 55 C (-13 F to 131 F)
  • Storage Temperature- -45 C to 85 C (-49 F to 185 F)
  • Ambient Humidity- 45-85% RH (Relative Humidity)
  • Rated Insulation Contact Voltage- 400 V
  • Rated Terminal Current- 8 Amps
  • Rated Operating Contact Voltage (AC)- 12V, 24V, 120V, 240V, 380V
  • AC Resistive Load- 8A @ 12V, 8A @ 24V, 8A @ 120V, 6A @ 240V, 3.8A @ 380V
  • AC Inductive Load- 8V @ 12V, 8A @ 24V, 6A @ 120V, 3A @ 240V, 1.9A @ 380V
  • Rated Operating Contact Voltage (DC)- 12V, 24V, 125V, 250V, 400V
  • DC Resistive Load- 2.5A @ 12V, 2.5A @ 24V, 1.1A @ 125V, 0.55A @ 250V, 0.3A @ 400V
  • DC Inductive Load- 2.5A @ 12V, 2.5A @ 24V, 0.55A @ 125V, 0.27A @ 250V, 0.15A @ 400V
  • Degree of Protection- IP 66 (Front Panel) / IP 20 (Terminal Side)
  • Approvals- UL & CUL Listed, CE
