Deca 22 mm Maintained Unibody Selector Switch, 2 Position, 1NO, Blue


Deca CP2S-2E10S 22 mm Unibody Selector Switch, 2 Position, 1NO, Blue
Deca CP2S-2E10S 22 mm Maintained Unibody Selector Switch, 2 Position, 1NO, Blue

Alternative Views:


Price: $7.48
MFG P/N: CP2S-2E10S
MFG: Deca
Weight (lbs): 0.1

Quantity in Stock :50


Availability:
In Stock
Product Code: CP2S-2E10S
Qty:

Description

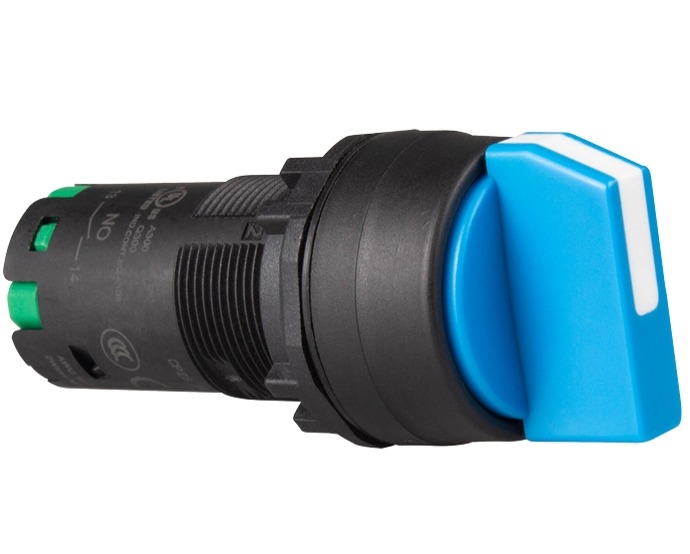

The Deca CP2S-2E10S maintained unibody selector switch has a blue head with a 1NO contact arrangement. Made for 22 mm mounting holes. It has a rated insulation voltage of 400V and rated terminal current of 8A. Not illuminated. Front operator rated IP 66 (total protection from dust and from powerful water jets in any direction). A maintained selector switch remains in the same position until it is changed manually, rather than automatically returning to a previous position

  • Positions are 45 degrees on either side of vertical
  • Wire Push-In feature saves on installation time
  • Spring clamps provide greater force to hold the wire in place
  • Two wiring holes per contact
  • Contact blocks are separated in the center for better insulation
  • Works with solid or stranded wire, or European terminal wiring
  • Unibody housing saves space
  • Mounting panel thickness: 0.8 - 12 mm

Specifications

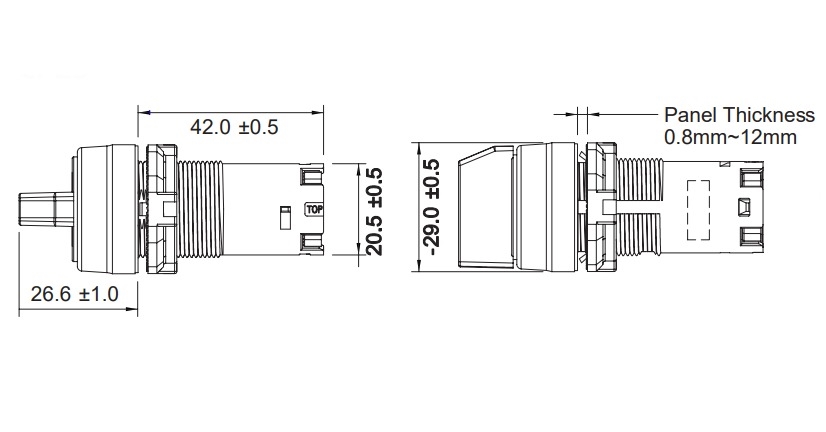

  • Dimensions- 29 mm Diameter x 68.6 mm Length (1.14" x 2.7")
  • Bezel- Plastic
  • Selector Switch Type- Maintained
  • Selector Switch Color- Blue
  • Positions- 2 (+/- 45 degrees from vertical)
  • Contact Arrangement- 1NO (Normally Open)
  • Insulation Resistance- 100 MOhm above (500V DC High Resistance Meter)
  • Vibration Resistance- Operation Extremes: 5-55Hz, Amplitude: 0.5mm, Damage Limits: 30Hz, Amplitude: 1.5mm
  • Shock Resistance- Operation Extremes: 100m/s2 Damage Limits: 1,000m/s2
  • Dielectric Strength- 2,000V AC 1 min
  • Operating Temperature- -25 C to 55 C (-13 F to 131 F)
  • Storage Temperature- -45 C to 85 C (-49 F to 185 F)
  • Ambient Humidity- 45-85% RH (Relative Humidity)
  • Rated Insulation Contact Voltage- 400 V
  • Rated Terminal Current- 8 Amps
  • Rated Operating Contact Voltage (AC)- 12V, 24V, 120V, 240V, 380V
  • AC Resistive Load- 8A @ 12V, 8A @ 24V, 8A @ 120V, 6A @ 240V, 3.8A @ 380V
  • AC Inductive Load- 8V @ 12V, 8A @ 24V, 6A @ 120V, 3A @ 240V, 1.9A @ 380V
  • Rated Operating Contact Voltage (DC)- 12V, 24V, 125V, 250V, 400V
  • DC Resistive Load- 2.5A @ 12V, 2.5A @ 24V, 1.1A @ 125V, 0.55A @ 250V, 0.3A @ 400V
  • DC Inductive Load- 2.5A @ 12V, 2.5A @ 24V, 0.55A @ 125V, 0.27A @ 250V, 0.15A @ 400V
  • Degree of Protection- IP 66 (Front Panel) / IP 20 (Terminal Side)
  • Approvals- UL & CUL Listed, CE

Deca Blue 1NO Unibody Selector Switch CP2S-2E10S
