Cnlinko DH24-USB3-MP-MPUSB3.0-0D5M-001 DH-24 Series USB Plug

Cnlinko DH-24 Series USB Plug
Cnlinko DH24-USB3-MP-MPUSB3.0-0D5M-001 DH-24 Series USB Plug

Alternative Views:
Price: $25.45
MFG P/N: DH24-USB3-MP-MPUSB3.0-0D5M-001
MFG: Cnlinko
Weight (lbs): 0.2



Availability: Out of Stock
Product Code: DH-24-USB3.0-P01
No Longer Available

Description


The Cnlinko DH24-USB3-MP-MPUSB3.0-0D5M-001 is a type A USB 3.0 plug data connector. Accommodates 26-24 AWG cable. Rated for 1.5 A. Screw type locking system. Also known as DH-24-USB3.0-P01

  • Metal alloy housing
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes 20" cable
  • USB connection indicated by blue housing color
  • Waterproof gasket in housing

Specifications

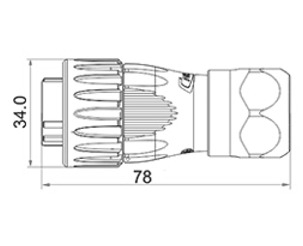

  • Dimensions- 78 mm Length x 34 mm Diameter (3.07" x 1.34")
  • Number of Contacts- 9
  • Wire Gauge- 26-24 AWG
  • Rated Current- 1.5 A
  • Contact Resistance- < 30 mOhm
  • Withstanding Voltage- 1000V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001

Cnlinko Metal USB 3.0 Type A Plug DH24-USB3-MP-MPUSB3.0-0D5M-001
