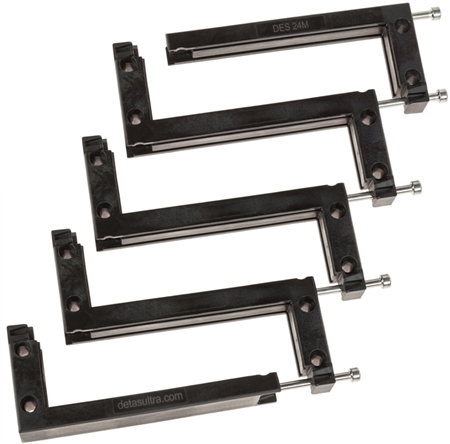

The AerosUSA 1731010254 DES 24MX4 cable entry frame fits 4.49" x 7.72" panel cutouts and can fit various configurations of SPP or SPG series inserts. The stackable type cable entry system allows for easy customization and for a large amount of cables to be inserted for an enclosure, control panel, or cabinet, which is perfect for smaller areas. Frame only. Inserts sold separately.
- Made for pre-terminated cables
- Halogen & silicone free
- Comes with external gasket
- Inserts can fit cables from 2 to 35mm
- Inserts slide into frame
- Allows for multiple sizes and types of cables in the same frame
- Strain relief based on EN 62444
- Mounting screws not included - available on request (part #1731991020)
- UV resistant
Specifications
- Housing Material- Glass Fiber Reinforced Polypropylene
- Cable Entries- Up to 40 small (SPP) inserts
- Number of Frames- 4
- Temperature Range- -40 C to 155 C (-40 F to 311 F)
- Overall Frame Dimensions- 5.75" Length x 8.62" Height x 0.98" Depth
- Cutout Dimensions- 4.49" x 7.72"
- Flammability- UL 94 V0
- Impact- IK10
- IP Rating- IP 54 (Partial protection from dust and splashing water from any direction)
- Approvals- NEMA 12, C UR US, Ecolab, RoHS Compliant
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
