Mencom Low Profile Panel Interface Connector, 2 USB, Single Size Housing

Mencom LP1-2USB-BFAF Low Profile Programming Interface
Mencom LP1-2USB-BFAF Low Profile Panel Interface Connector, 2 USB, Single Size Housing

Alternative Views:
Price: $127.01
Note: Please call or email [email protected] for alternatives
MFG P/N: LP1-2USB-BFAF
MFG: Mencom
Weight (lbs): 0.8

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: LP1-2USB-BFAF
Qty:


Description

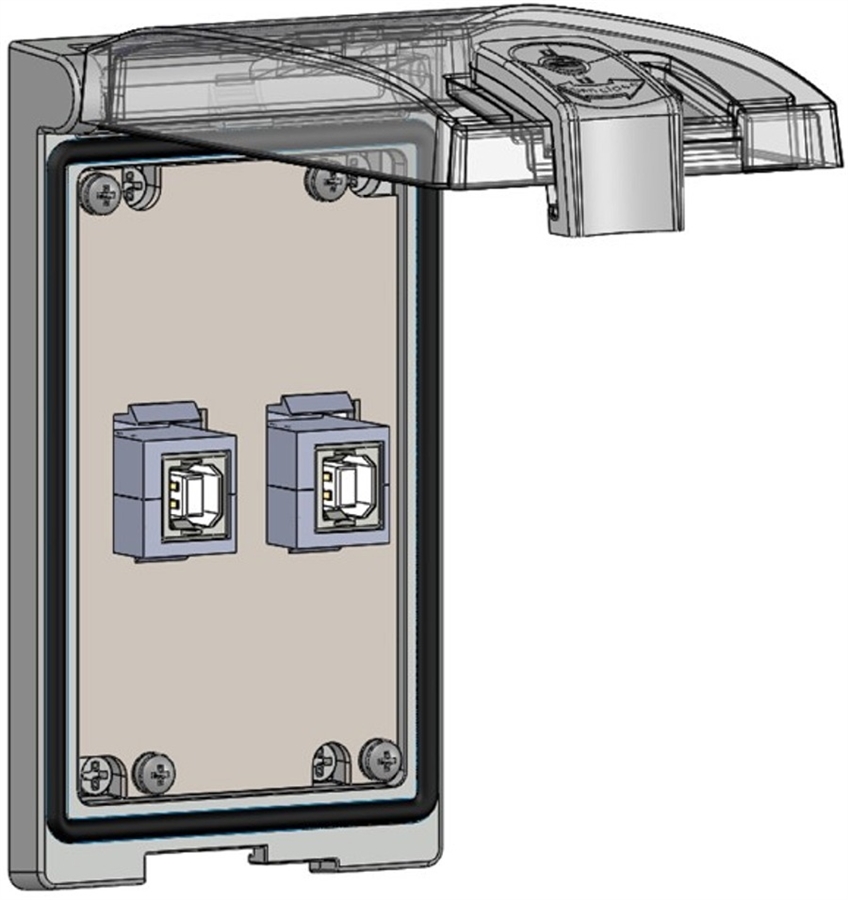

The Mencom LP1-2USB-BFAF panel interface connector (PIC) features two Type B to Type A USB ports in a single cover housing. Housing is rated IP 65 and has a sliding lock mechanism that can be operated with a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without needing to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Gasket- Nitrile/UL70
  • Housing- Single Cover Low Profile Housing

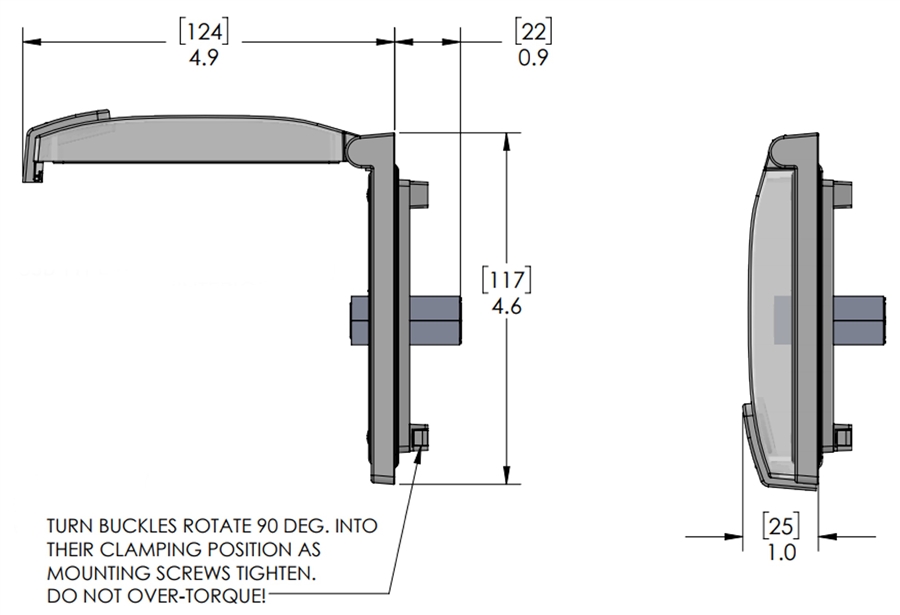

  • Housing Dimensions- 2.6" Width x 4.6" Height x 1" Depth
  • USB- (2) Form B to Form A Female/Female
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)
  • Panel Thickness- 5mm max.
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
