The Teltonika TSW100000010 is an unmanaged 5 port Power over Ethernet switch. It has 5 Ethernet ports, four of which support PoE standards. Has Gigabit capability. Housed in a metal enclosure, it centralizes the power supply and is made for high bandwidth applications that need a reliable data connection and power supply.
PRODUCT FEATURES
- Compact Housing
- (5) RJ45 Ethernet ports, 10/100/1000 Mbps
- (1) Power LED
- (10) LAN status LEDs
- 4 pin industrial DC power connector
- (1) Grounding screw
- Includes- Switch, 65W power supply, and quick start guide
SPECIFICATIONS
Ethernet
LAN- (5) LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PoE
PoE Ports- Port 1 - 4
PoE Standards- 802.3af and 802.3at
PoE Max Power per Port (at PSE)- 30 Watts
Total PoE Power Budget (at PSE)- 120 Watts
Performance
Bandwidth- 10 Gbps
Packet Buffer- 128 KB
MAC address table size- 2K entries
Power
Connector- 4 pin industrial DC power socket
Input voltage range- 7-57 VDC
Input voltage range for PoE- 44-57 VDC
Power consumption- Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
Environmental
Housing- Aluminum housing

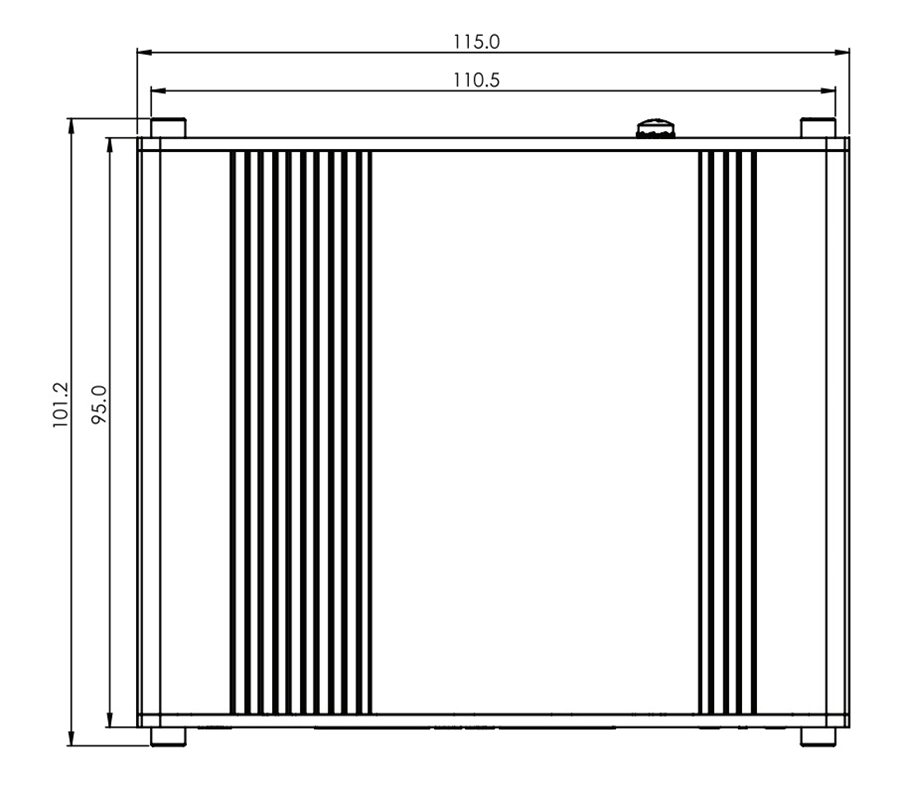

Dimensions- 115 mm Width x 32 mm Height x 95 mm Depth (4.52" x 1.26" x 3.74")
Mounting Options- DIN rail or wall mounting (additional kit needed), flat surface placement
Operating Temperature- -40 C to 75 C (-40 F to 167 F)
Operating Humidity- 10-90% non-condensing
Teltonika 5 Port PoE Ethernet Switch
