Mencom DP1-DB9-RJ45-R-32 Panel Interface Connector

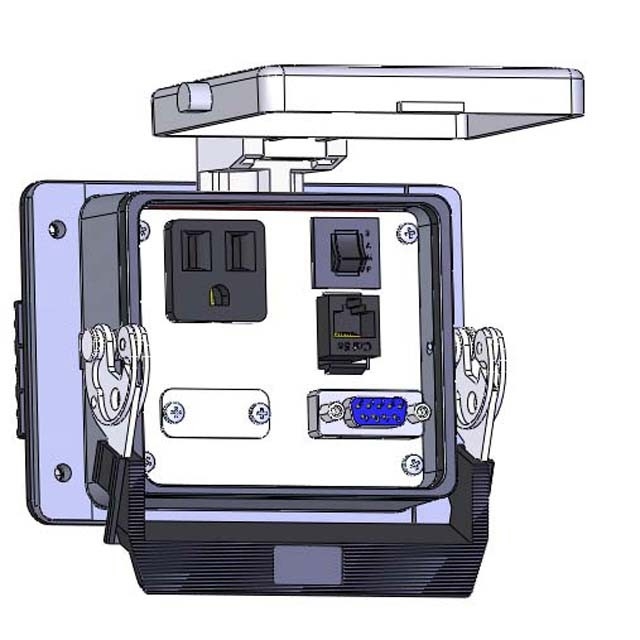

Mencom DP1-DB9-RJ45-R-32 Panel Interface Connector, Simplex outlet, DB9, RJ45, 3A reset
Larger Photo




Mencom Panel Interface Connector, Simplex outlet, DB9, RJ45, 3A reset

Price: $193.54
Note: Delivery: 2-5 Business Days
MFG P/N: DP1-DB9-RJ45-R-32
MFG: Mencom
Weight (lbs): 1.25

Quantity in Stock :1


Availability:
In Stock
Product Code: DP1-DB9-RJ45-R-32
Qty:

View quantity discounts
Description


Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel to allow the user access to the PLC or PAC without needing to open the control cabinet. The Mencom DP1-DB9-RJ45-R-32 PIC features a 120V Simplex receptacle, 9 Pin Female Ext/Male Interior D-Sub, RJ45 port, and a 3 amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 32 Bulkhead Housing
  • Power Ports- 120V Simplex Receptacle
  • D-Sub- 9 Pin D-Sub Female Ext. / Male Int.
  • RJ / Ethernet- RJ45
  • Fuse- 3 Amp resettable
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- UL & CUL Recognized

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
