Mencom DP1-06LS Panel Interface Connector

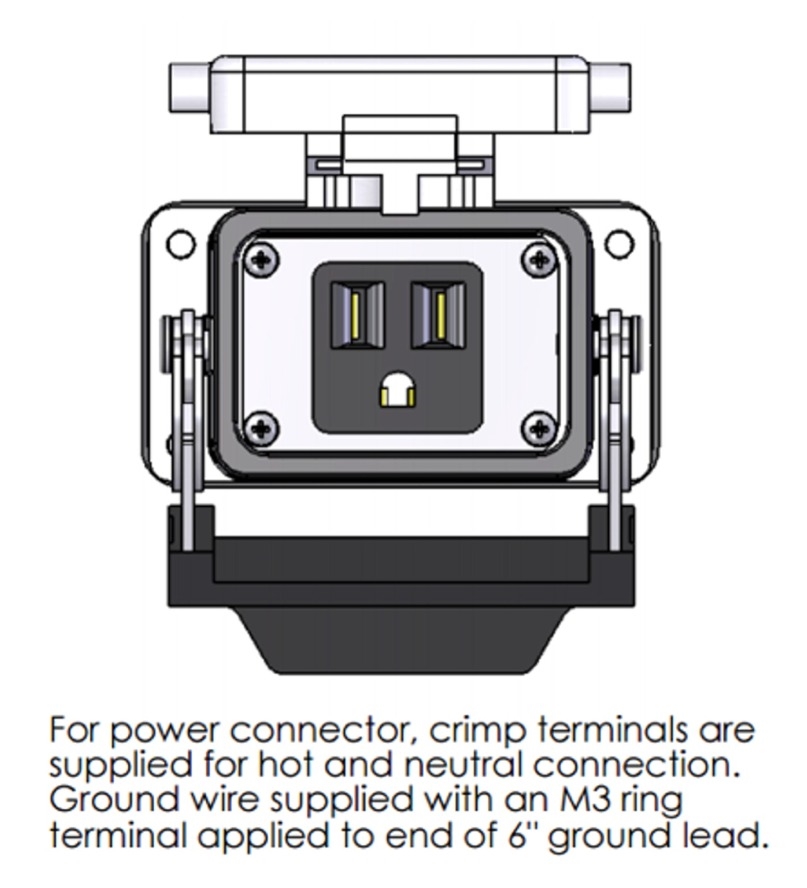

Mencom DP1-06LS Panel Interface Connector, Simplex Outlet, 6LS housing
Larger Photo




Mencom Panel Interface Connector, Simplex Outlet, 6LS housing

Price: $80.78
Note: Delivery: 2-5 Business Days
MFG P/N: DP1-06LS
MFG: Mencom
Weight (lbs): 0.6

Quantity in Stock :7


Availability:
In Stock
Product Code: DP1-06LS
Qty:

View quantity discounts
Description


Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom DP1-06LS PIC features a 120V simplex receptacle in a size 6 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 16 Amps
  • SCCR- 10 kA
  • Housing- Size 6 Bulkhead Housing
  • Power Ports- 120V Simplex Receptacle
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- Ul & CUL Recognized

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
