Mencom MIL-SPEC Cordset, Size 14S-2, 2 Pole, Female Straight, 2 M

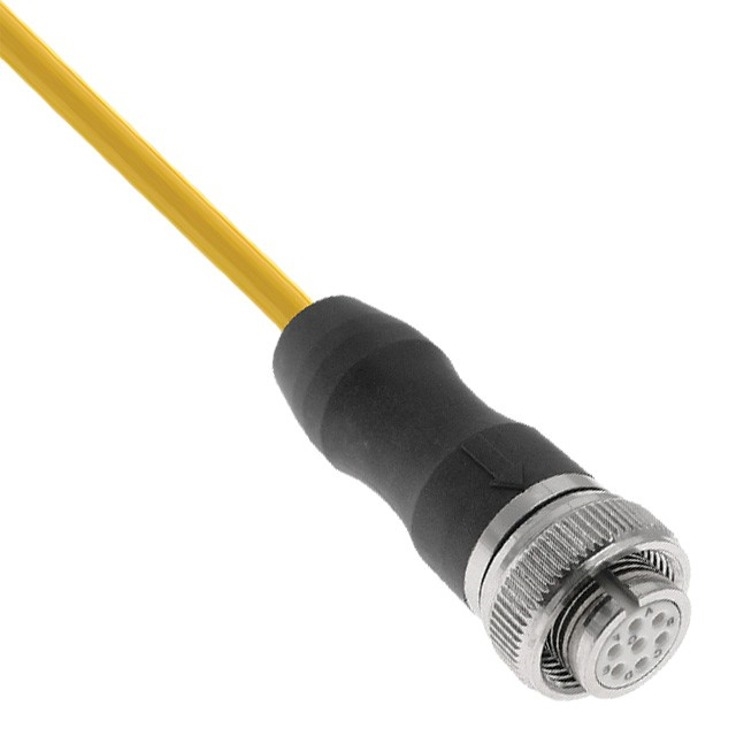

Mencom MS14S-2FP-2M MIL-SPEC Size 14S-2 Molded Cable
Mencom MS14S-2FP-2M MIL-SPEC Cordset, Size 14S-2, 2 Pole, Female Straight, 2 M

Alternative Views:
Price: $59.15
Note: Please call or email [email protected] for alternatives
MFG P/N: MS14S-2FP-2M
MFG: Mencom
Weight (lbs): 0.6

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: MS14S-2FP-2M
Qty:


Description


The Mencom MS14S-2FP-2M MIL-SPEC Size 14S-2 female straight cordset features a 2 pin insert, 16 gauge wire and 2 meters of cable. The cable is yellow PVC with silver plated copper alloy contacts. The cable is rated at 600V and 105 C. Rated IP 67. Operating temperature: -40 C to 105 C (-40 F to 221 F). The threaded couplings on Mencom MIL-SPEC cordsets allow the connector to withstand exposure to moisture and vibration once mated. They are perfect for the harsher environments found in industrial and automation applications, and are compatible with existing MIL-SPEC 5015 style connectors.

Specifications

  • Shell- Nickel Plated Aluminum
  • Contacts- Silver Plated Copper Alloy
  • Cable- 16/2 STOOW Yellow PVC Jacket
  • Gasket- TPE
  • Rated Voltage- 600 V
  • Rated Current- 13 Amps
  • Wire Gauge- 16
  • Pin Count- 2
  • Cable Length- 2 Meters (6.56 Feet)
  • Cable O.D.- 0.37
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- 0.8750-20UNEF
  • Ground Wire- No
  • Nut- No

Mencom MIL-SPEC 5015 Molded Cordset Part Number Guide
