Mencom MIN Size III Cordset, 12 Pole, Female Right Angle, 18 AWG, 20 Feet

Mencom MIN Size III Cordset - MIN-12FPX-20-R

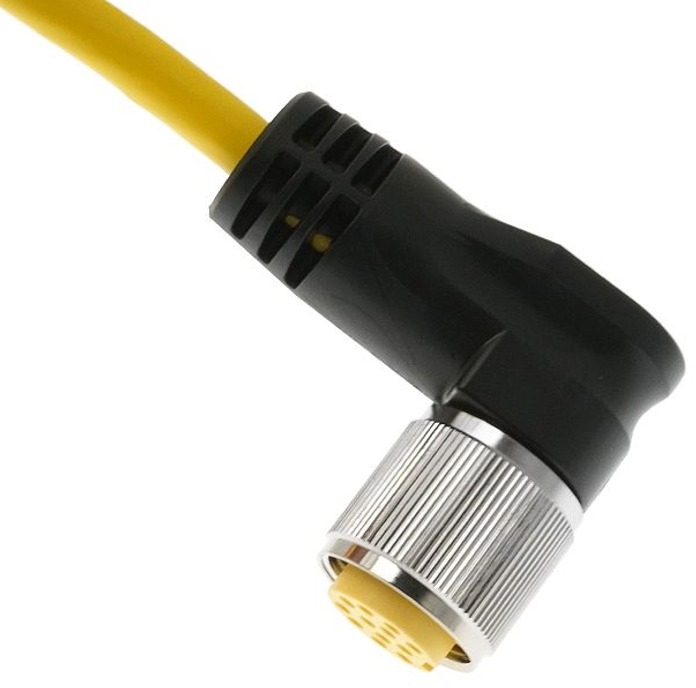

Mencom MIN-12FPX-20-R MIN Size III Cordset, 12 Pole, Female Right Angle, 18 AWG, 20 Feet

Alternative Views:
Price: $147.92
MFG P/N: MIN-12FPX-20-R
MFG: Mencom
Weight (lbs): 2.6

Quantity in Stock :3


Availability: In Stock
Product Code: MIN-12FPX-20-R
Qty:


Description


The Mencom MIN-12FPX-20-R MIN Size III female right angle cordset features a 12 pin insert, 18 gauge wire and 20 feet of cable. The body is black PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size III cordsets have 1-1/8" mating thread and offer plug and play capability for a number of applications.

Specifications

  • Body- Black PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Clear Anodized Aluminum
  • Cable- 18/12 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 18
  • Pin Count- 12
  • Cable Length- 20 Feet (6.1 m)
  • Cable O.D.- 0.41
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1.125-16UN2
  • Ground Wire- Yes
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom MIN Molded Cordset Part Number Guide
