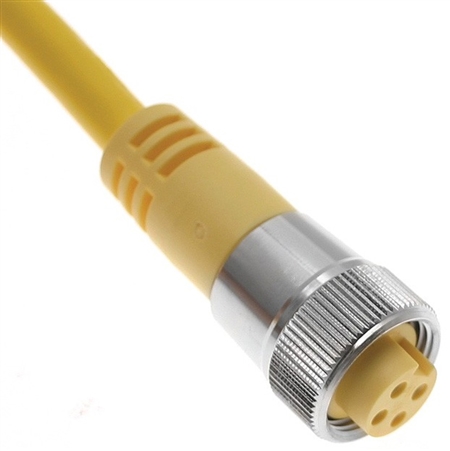

Mencom MIN Size I Cordset, 6 Pole, Female Straight, 18 AWG, 30 Feet

The Mencom MIN-6FPX-30 MIN Size I female straight molded cable features a 6 pin insert, 18 AWG wire and 30 feet of cable. The body is yellow PVC with gold plated copper alloy contacts and a nickel plated brass coupling nut. The cable is rated at 300V and 105 C. Dust and water protection rated IP 69. Mencom MIN Size I cordsets have 7/8" thread and offer plug and play capability for a variety of applications.

Pin #1 - White
Pin #2 - Red
Pin #3 - Green/Yellow
Pin #4 - Orange
Pin #5 - Black
Pin #6 - Blue

Specifications

• Body- Yellow PVC
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 18/6 SJTOOW Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 5.5 Amps
• Wire Gauge- 18
• Pin Count- 6
• Cable Length- 30 Feet (9.1 m)
• Cable O.D.- 0.38
• Temperature- -40 C to 105 C (-40 F to 221 F)
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head- Female Straight
• Coupling Thread- Female
• Mating Thread / Type Head- 7/8-16UN2
• Ground Wire- Yes
• Nut- No
• Approvals- UL & CUL Listed

Mencom MIN Molded Cordset Part Number Guide
