Mencom MIN Size I Plug, 5 Pole, Male Straight, 5-13 mm, Stainless Steel Coupling Nut

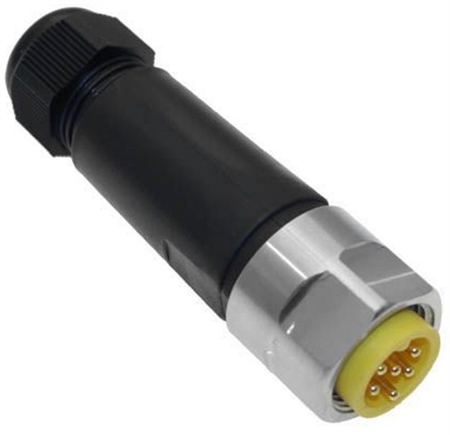

Mencom MIN Size I 5 Pin Male Hardwired Connector - MIN-5MP-FW-SS
Mencom MIN-5MP-FW-SS MIN Size I Plug, 5 Pole, Male Straight, 5-13 mm, Stainless Steel Coupling Nut

Alternative Views:
Price: $33.22
MFG P/N: MIN-5MP-FW-SS
MFG: Mencom
Weight (lbs): 0.16

Quantity in Stock :6


Availability: In Stock
Product Code: MIN-5MP-FW-SS
Qty:


Description


The Mencom MIN-5MP-FW-SS MIN Size I male straight field wireable plug features a 5 pin insert. The cable entry accommodates 5-13 mm cable. The body is black polyamide with gold plated copper alloy contacts and a stainless steel coupling nut. The MIN5MPFWSS has a rated voltage of 600V and a rated current of 12A. Rated IP 67. Operating temperature -40 C to 90 C (-40 F to 194 F). Connection via screw terminals. Mencom MIN Size I connectors have 7/8" mating thread & offer plug and play solutions for various applications.

Specifications

  • Body- Black Polyamide
  • Insert- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Stainless Steel
  • Seal- NBR
  • Dimensions- 3.7" Length x 1.1" Width
  • Rated Voltage- 600 V
  • Rated Current- 12 Amps
  • Pin Count- 5
  • Upper AWG- 14
  • Lower AWG- 22
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Male Straight
  • Coupling Thread- Female
  • Mating Thread/Type Head- 7/8-16UN2
  • Nut- No
  • Cable O.D. Range- 5-13 mm
  • Approvals- UL & CUL listed

Mencom 5 Pin Male Mini Hardwired Connector MIN-5MP-FW-SS
