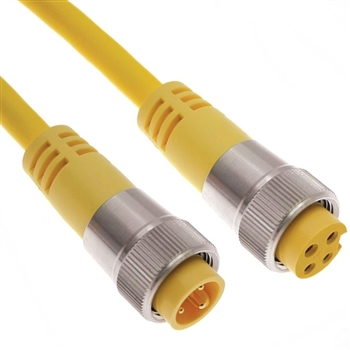

The Mencom MIN-5MFP-6 MIN Size I male / female straight extension cordset features a 5 pin insert, 16 gauge wire and 6 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 600V and 105 C. Rated IP 69. Mencom MIN Size I (7/8") cordsets provide plug and play solutions for various applications.
Pin #1 - White
Pin #2 - Red
Pin #3 - Green/Yellow
Pin #4 - Orange
Pin #5 - Black
Specifications
- Body- Yellow PVC
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 16/5 STOOW Yellow PVC Jacket
- Rated Voltage- 600 V
- Rated Current- 8 Amps
- Wire Gauge- 16
- Pin Count- 5
- Cable Length- 6 Feet (1.83 m)
- Cable O.D.- 0.51
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head 1- Male Straight
- Orientation Head 2- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- 7/8-16UN2
- Ground Wire- Yes
- Nut- No
- Approvals- UL & CUL Listed
Can be compatible with Brad Harrison/Molex 130010-1005
