Mencom MIN Size I Cordset, 4 Pole, Female Right Angle, 18 AWG, 6 M

Mencom MIN Size I Cordset - MINC-4FPX-6M-R

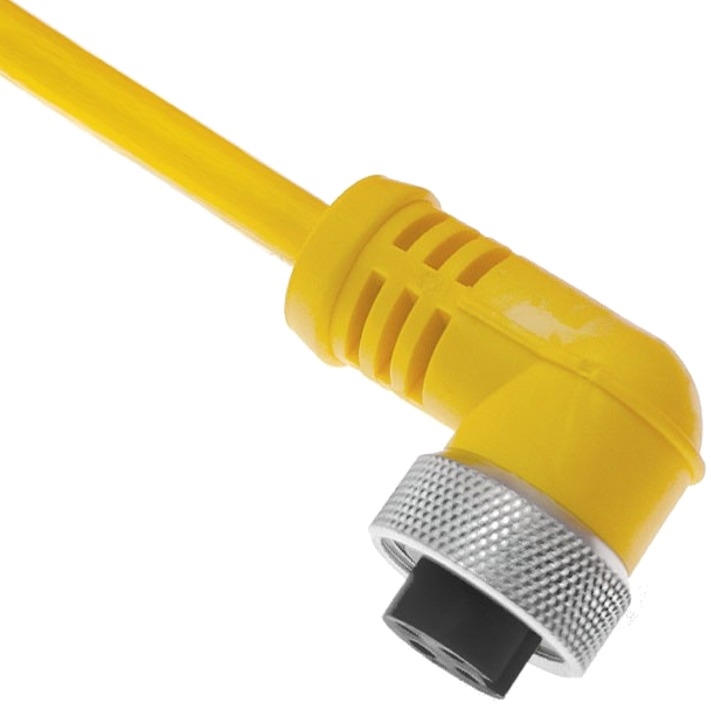

Mencom MINC-4FPX-6M-R MIN Size I Cordset, 4 Pole, Female Right Angle, 18 AWG, 6 M

Alternative Views:
Price: $49.08
MFG P/N: MINC-4FPX-6M-R
MFG: Mencom
Weight (lbs): 1.14

Quantity in Stock :12


Availability: In Stock
Product Code: MINC-4FPX-6M-R
Qty:


Description


The Mencom MINC-4FPX-6M-R MIN Size I female right angle cordset features a 4 pin insert, 18 AWG wire and 6 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I cordsets feature 7/8" mating thread & offer plug and play solutions for different applications. European Cenelec color code.

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black

Specifications

  • Body- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 18/4 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 5.5 Amps
  • Wire Gauge- 18
  • Pin Count- 4
  • Cable Length- 6 Meter (19.68 feet)
  • Cable O.D.- 0.29
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female

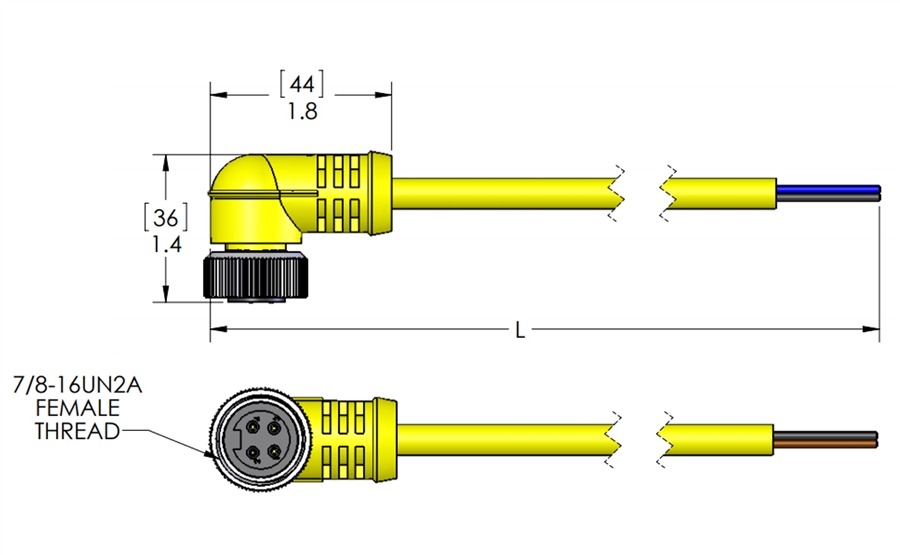

  • Mating Thread / Type Head- 7/8-16UN2
  • Ground Wire- No
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom MIN Molded Cordset Part Number Guide
