Mencom MIN Size I Plug, 3 Pole, Male Straight, 5-13 mm, Male Threads

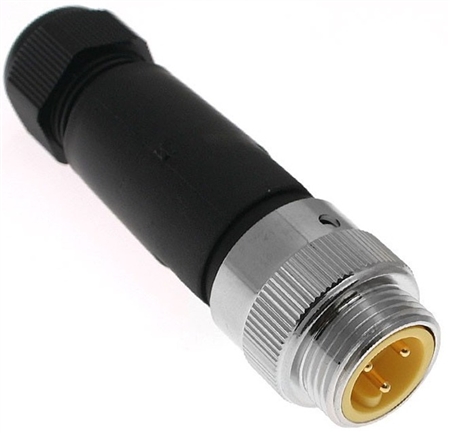

Mencom MIN Size I 3 Pin Male Hardwired Connector - MIN-3MPM-FW
Mencom MIN-3MPM-FW MIN Size I Plug, 3 Pole, Male Straight, 5-13 mm, Male Threads

Alternative Views:
Price: $21.60
MFG P/N: MIN-3MPM-FW
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :167


Availability: In Stock
Product Code: MIN-3MPM-FW
Qty:


Description


The Mencom MIN-3MPM-FW MIN Size I male straight field wireable plug features a 3 pin insert with male threads. The cable entry accepts 5-13 mm cable. The body is black polyamide with gold plated copper alloy contacts. The MIN3MPMFW has a rated voltage of 600V and a rated current of 18A. Rated IP 67. Operating temperature -40 C to 105 C (-40 F to 221 F). Connection via screw terminals. Mencom MIN Size I hardwired connectors have 7/8" mating thread & plug and play capability for a number of applications.

Specifications

  • Body- Black Polyamide
  • Insert- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Seal- NBR
  • Dimensions- 3.7" Length x 1.1" Width
  • Rated Voltage- 600 V
  • Rated Current- 18 Amps
  • Pin Count- 3
  • Upper AWG- 14
  • Lower AWG- 22
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread/Type Head- 7/8-16UN2
  • Nut- No
  • Cable O.D. Range- 5-13 mm
  • Approvals- UL & CUL listed

Mencom 3 Pin 7/8" MIN Hardwired Connector MIN-3MPM-FW
