Lumberg Automation RKMWV 4-07/2M M8 Molded Cable, Female Right Angle, 4 Pin, 2 M


Lumberg Automation RKMWV 4-07/2M Female Straight M8 Molded Cable
Lumberg Automation RKMWV 4-07/2 M M8 Molded Cable, Female Right Angle, 4 Pin, 2 M

Alternative Views:


Price: $12.51
MFG P/N: 700000065
MFG: Lumberg Automation
Weight (lbs): 0.3

Quantity in Stock :1


Availability:
In Stock
Product Code: 700000065
Qty:


Description

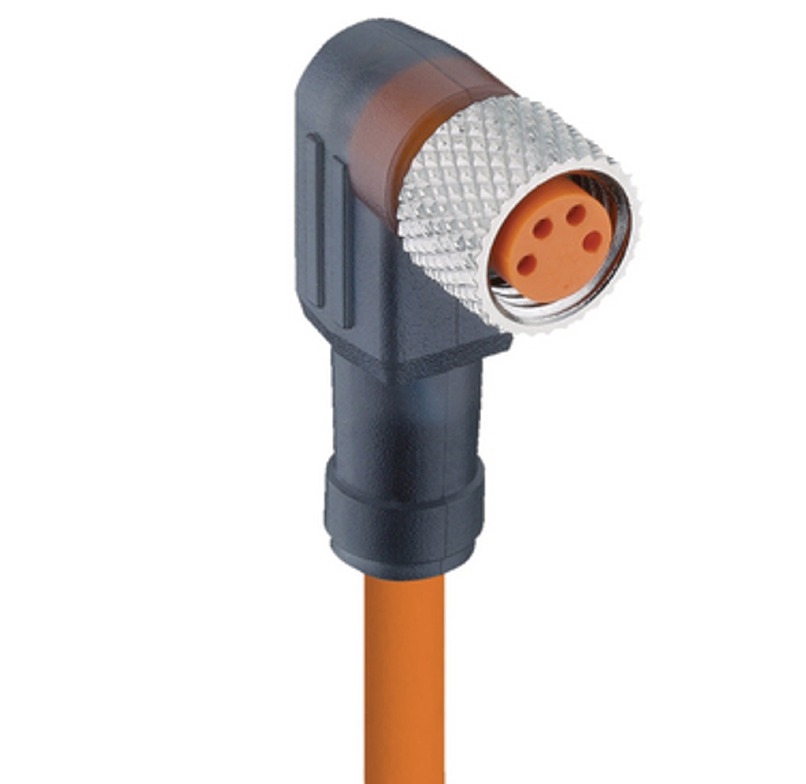

The Lumberg Automation 700000065 RKMWV 4-07/2M M8 pico female right angle molded cable features 4 pins with a rated voltage of 30V, a rated current of 4A and 2 meters of cable. Protection class IP 65/67. The cable is covered in orange PVC and it features copper alloy contacts. It is made to be resistant to oils and chemical exposure, and is intended for use in actuator/sensors.

Specifications

  • Cable Type- Orange PVC AWM 2464
  • Type of Contact- Female Right Angle

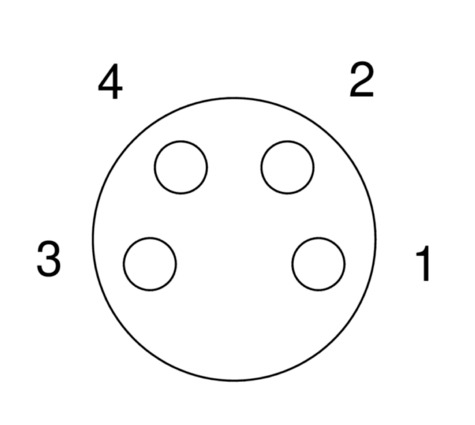

  • Number of Pins- 4
  • Rated Voltage- 30V AC/DC
  • Rated Current- 4 Amps
  • Contact Resistance- </= 10 mOhm
  • Conductor Size- 0.25 mm2
  • Cable Diameter- 0.2" (5 mm)
  • Protection Class- IP 65 / 67
  • Contact Base Material- CuSn
  • Contact Plating Material- Cu/Au
  • Housing Material- Translucent Gray TPU
  • Insert Material- Orange TPU
  • Coupling Nut Material- Nickel Plated CuZn
  • O-Ring Material- FKM
  • Wire Insulation Material- Polypropylene
  • Operating Temperature- -40 C to +90 C (-40 F to 194 F)
  • Cable Length- 2 meters (6.56 ft)
  • Approvals- UL 2238, C UR US, RoHS Compliant
