Lumberg Automation RSMV 4-RKMV 4-594/2 M Male/Female M8 Cable

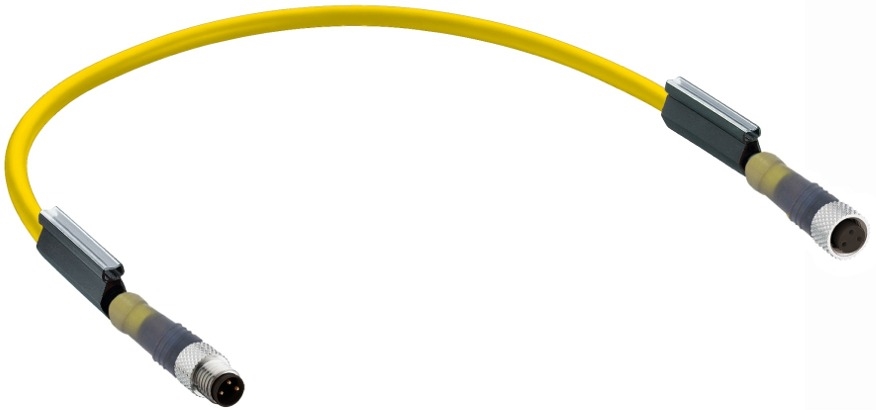

Lumberg Automation RSMV 4-RKMV 4-594/2 M, Male/Female Straight, 4 Pin, 2 M, M8 Molded Cable
Larger Photo




Lumberg Automation RSMV 4-RKMV 4-594/2 M, Male/Female Straight, 4 Pin, 2 M, M8 Molded Cable
1 answered questionAsk a question

Price: $18.83
MFG P/N: 11201
MFG: Lumberg Automation
Weight (lbs): 0.2

Quantity in Stock :4


Availability:
In Stock
Product Code: 11201
Qty:

View quantity discounts
Description


The Lumberg Automation 11201 RSMV 4-RKMV 4-594/2 M M8 male/female straight molded cable features 4 pin inserts with a nominal voltage of 30V, a rated current of 4A and 2 meters of cable. Protection class IP 67, IP 68 / NEMA 6P. The cable is jacketed in yellow PVC, with contacts made from copper alloy. It is intended to withstand vibration and is used primarily in actuator/sensors.

Specifications

  • Housing Color- Transparent Gray
  • Cable Type- Yellow PVC
  • Type of Contact- Male/Female Straight
  • Number of Pins- 4
  • Rated Voltage- 63V (IEC) / 30V (UL)
  • Rated Current- 4 Amps
  • Conductor Size- 22 AWG Stranded
  • Cable OD- 5.2 mm nominal
  • Protection Class- IP 67, IP68 / NEMA 6P
  • Contact Material- Copper Alloy
  • Housing Material- TPU
  • Insert Material- Black PA/TPU
  • Coupling Screw Material- Nickel Plated Brass
  • O-Ring- FKM (female only)
  • Operating Temperature- -30 C to +80 C (-22 F to 176 F)
  • Cable Length- 2 meters (6.56 ft)
  • Approvals- C UR US

Lumberg Automation M8 Molded Cordset Part Number Guide



Q&A
Questions & Answers
avatar
Popular Questions

4 years ago
Looking for a : 4 pin M8 to 4 pin M8 male to female 0.1meter long patch cord, braided would be good, riser pvc is fine, xxxx in connections See more »
4 years ago
For an M8 double ended 4 pin male to female cordset, the shortest length we can quote would be 0.2 meters. It would be considered a non-standard custom length, so there may be a minimum order quantity. If 0.2 meters would work for you, please feel free to contact us at sales@majorelectronix.com for a quote. The shortest standard length we have for this cable is 1 meter (RSMV 4-RKMV 4-594/1 M).
0 | 0
