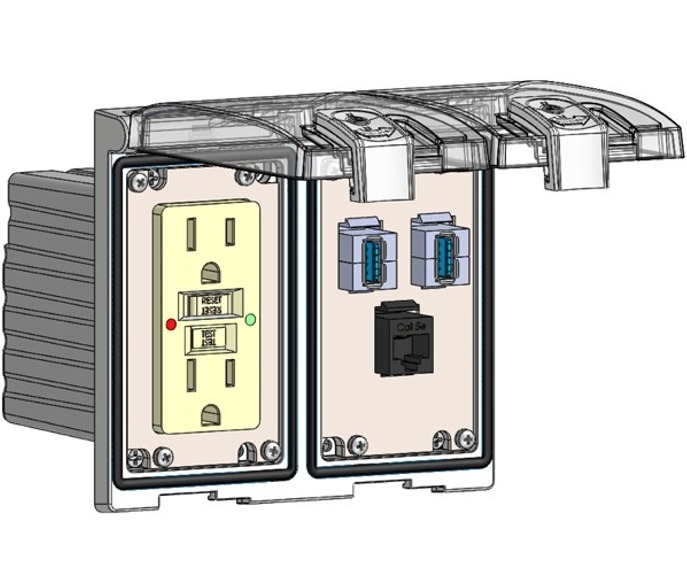

The Mencom LP2-GF-RJ45-2USB-AFAF panel interface connector (PIC) features a 120V GFCI Duplex Receptacle, a female/female Ethernet RJ45 port, and two Type A to Type A USB ports in a two cover housing. Housing is rated IP 65 and features sliding lock mechanisms that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Back Cover- Polypropylene
- Gasket- Nitrile/UL70
- Volts- 125V
- Amps- 15 Amps
- SCCR- 10kA
- Housing- Two Cover Low Profile Housing
- Dimensions- 5.13" Width x 4.6" Height x 4.11" Depth
- Power Ports- 120V GFCI Duplex Receptacle
- USB- (2) Form A to Form A Female/Female
- RJ / Ethernet- RJ45 Female/Female Ethernet
- Screw Size- M3
- Torque- 0.9 N-m (0.675 Lb-Ft)

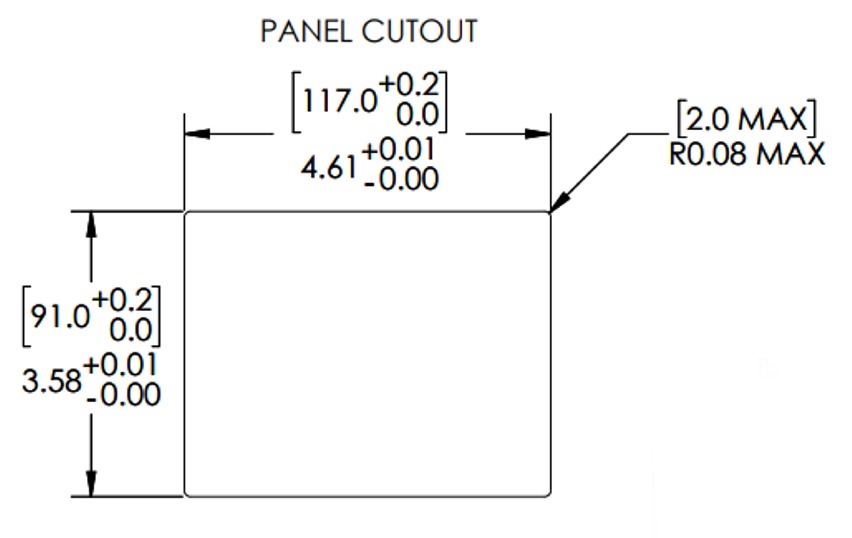

- Panel Thickness- 5mm max.
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from and direction)
|
|
|
 |
|
 |
|
