Mencom Panel Interface Connector, GFCI Duplex outlet, USB, 3A Reset

Mencom GF-USB-BFAF-R-32 Panel Interface Connector
Mencom GF-USB-BFAF-R-32 Panel Interface Connector, GFCI Duplex outlet, USB, 3A Reset

Alternative Views:
Price: $249.23
MFG P/N: GF-USB-BFAF-R-32
MFG: Mencom
Weight (lbs): 1.64



Availability: In Stock
Product Code: GF-USB-BFAF-R-32
Qty:


Description


Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom GF-USB-BFAF-R-32 PIC features a 120V GFCI Duplex Receptacle, a USB port, and a 3 amp resettable fuse in a size 32 housing. USB is Form B female to Form A female. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 32 Bulkhead Housing
  • Power Ports- 120V GFCI Duplex Receptacle

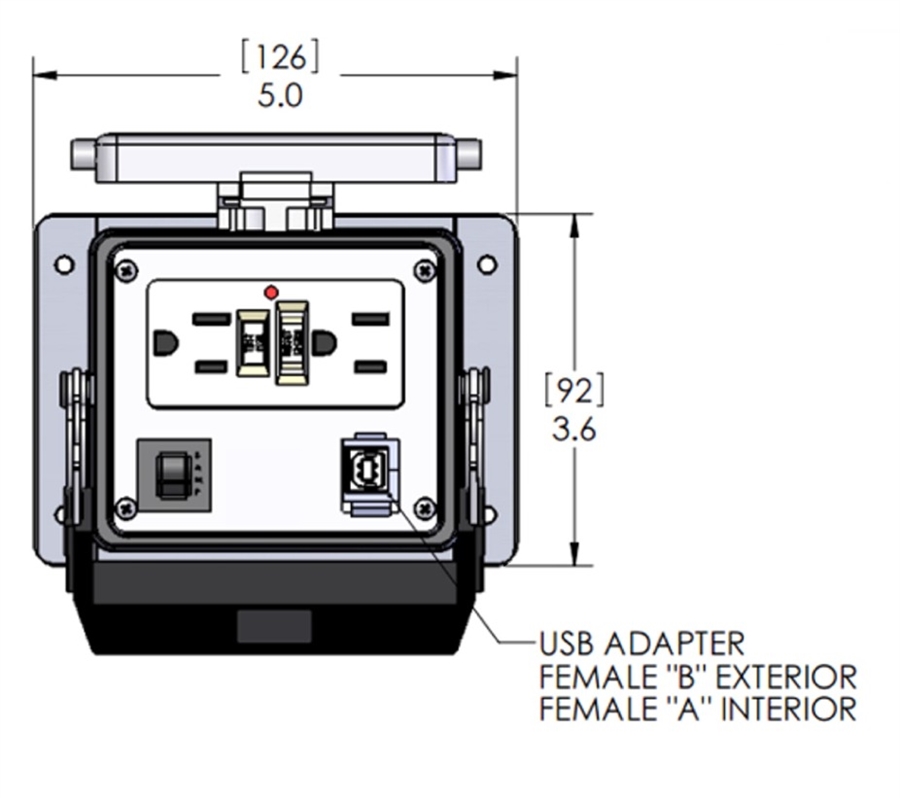

  • USB- Form B Female to Form A Female
  • Resets- 3 Amp Reset
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- UL & CUL Recognized
