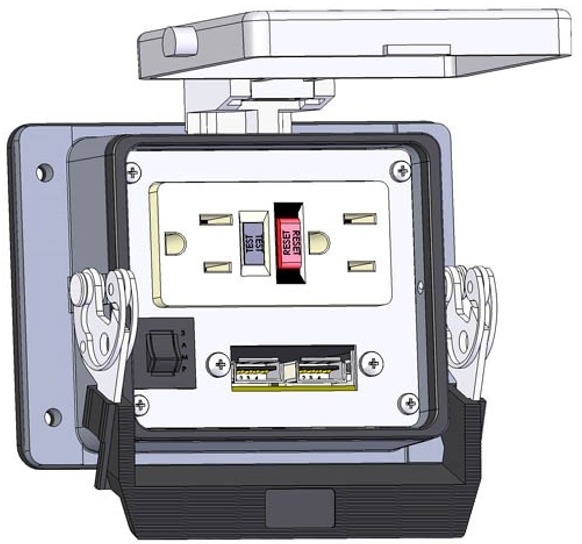

Mencom Panel Interface Connectors (PIC), or programming interfaces, attach to the outside of the control panel and allow access to the PLC or PAC without needing to open the control cabinet. The Mencom GF-USB-R-32 PIC features a 120V GFCI Duplex Receptacle, 2 Form A to Form A Female/Female USB connections, and a 3 Amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Volts- 125 V
- Amps- 3 Amps
- SCCR- 10kA
- Housing- Size 32 Bulkhead Housing
- Power Ports- 120V GFCI Duplex Receptacle
- USB- 2 Form A to Form A Female / Female
- Reset- 3 Amp Reset
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Approvals- UL & CUL Recognized
|
|
|
 |
|
 |
|
