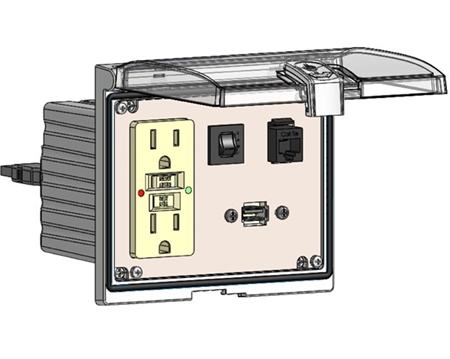

The Mencom LP3-GF-RJ45-USB-03-R PIC features a 120V GFCI Duplex Receptacle, female/female Ethernet RJ45 port, 3 Amp resettable fuse, and 3 feet of USB Type A connector cable in a double size housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Back Cover- Polypropylene
- Gasket- Nitrile/UL70

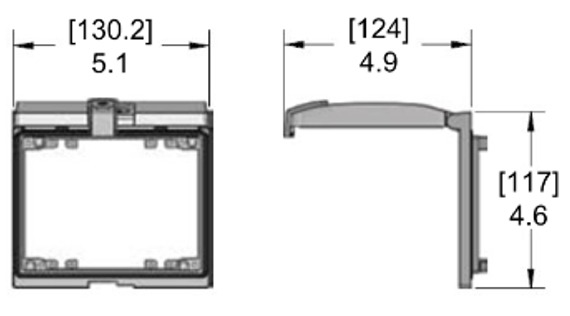

- Housing- Double Cover Low Profile Housing
- Power Ports- 120V GFCI Duplex Receptacle
- RJ / Ethernet- RJ45 Female/Female Ethernet
- USB- 3 Foot Cable, Female Form A to Male Form A
- Fuse- 3 Amp Reset
- Screw Size- M3
- Torque- 0.9 N-m (0.675 Lb-Ft)

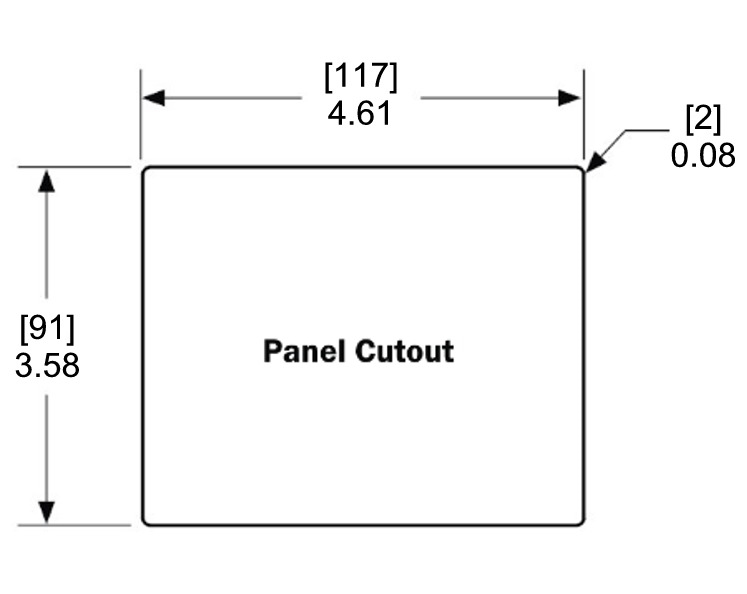

- Panel Thickness- 5mm max.
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
