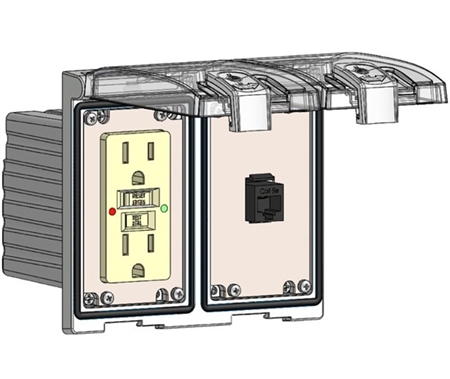

Mencom LP2-GF-RJ45 Low Profile Programming Interface
Mencom LP2-GF-RJ45 Low Profile Panel Interface Connector, GFCI Duplex outlet, RJ45, Dual Door
Larger Photo




Mencom LP2-GF-RJ45 Low Profile Panel Interface Connector, GFCI Duplex outlet, RJ45, Dual Door

Price: $224.54
Note: Please call or email sales@majorelectronix.com for alternatives
MFG P/N: LP2-GF-RJ45
MFG: Mencom
Weight (lbs): 1.6

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: LP2-GF-RJ45
Qty:

View quantity discounts
Description


The Mencom LP2-GF-RJ45 panel interface connector (PIC) features a 120V GFCI Duplex Receptacle and a female/female Ethernet RJ45 port in a two cover housing. Housing is rated IP 65 and features sliding lock mechanisms that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70
  • Volts- 125V
  • Amps- 15 Amps
  • SCCR- 10kA
  • Housing- Two Cover Low Profile Housing
  • Dimensions- 5.13" Width x 4.6" Height x 4.11" Depth
  • Power Ports- 120V GFCI Duplex Receptacle
  • RJ / Ethernet- RJ45 Female/Female Ethernet
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)
  • Panel Thickness- 5mm max.
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
