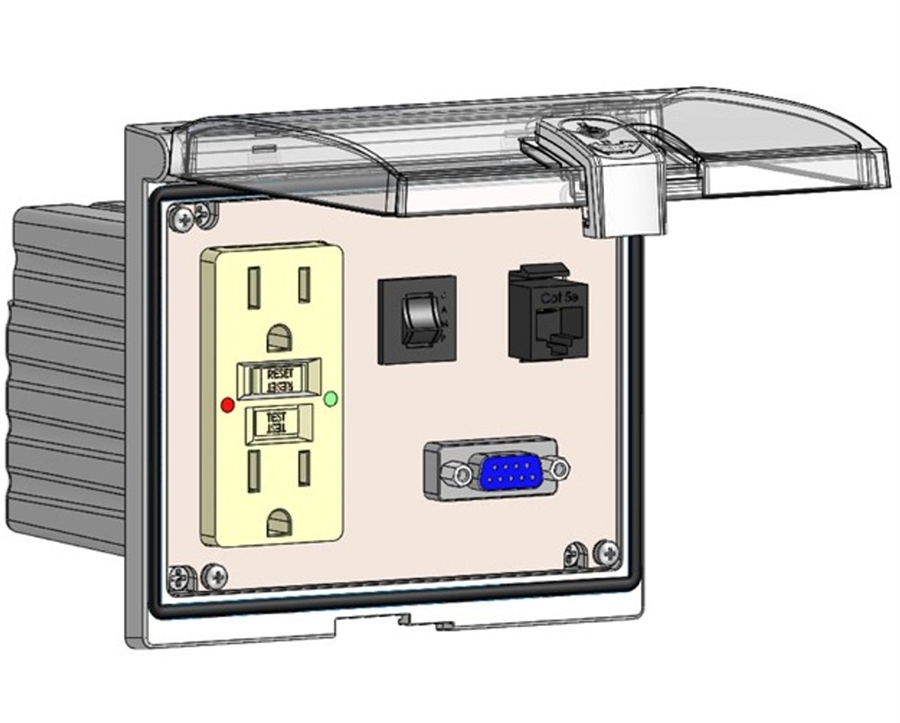

The Mencom LP3-GF-DB9F-RJ45-R panel interface connector (PIC) features a 120V GFCI Duplex Receptacle, a female/female Ethernet RJ45 port, a female ext./female int. 9 Pin D-Sub, and a 3 Amp resettable fuse in a double size housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs attach to the outside of the control panel and allow the PLC or PAC to be accessed without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.
Specifications
- Body- Nickel Plated Zinc
- Front Cover- Polycarbonate
- Latch & Lock- PBT
- Back Cover- Polypropylene
- Gasket- Nitrile/UL70

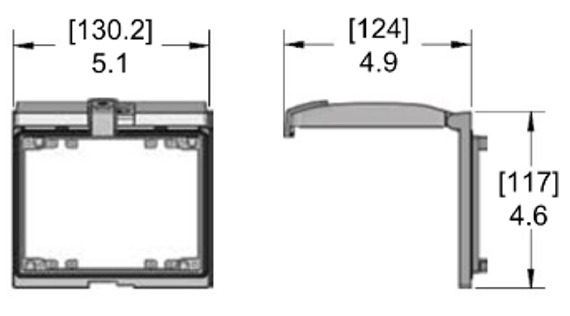

- Housing- Double Cover Low Profile Housing
- Power Ports- 120V GFCI Duplex Receptacle
- RJ / Ethernet- RJ45 Female/Female Ethernet
- D-Subs- 9 Pin Female Ext/Female Int
- Fuse- 3 Amp Resettable
- Screw Size- M3
- Torque- 0.9 N-m (0.675 Lb-Ft)

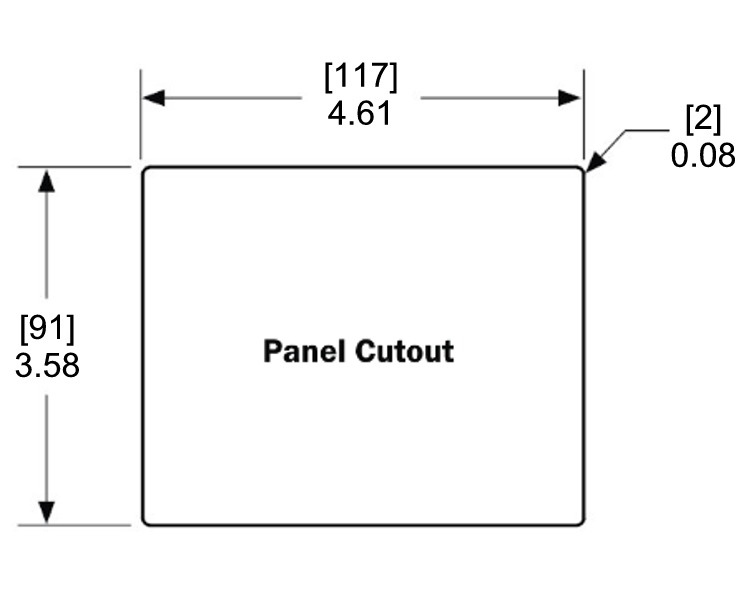

- Panel Thickness- 5mm max.
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
