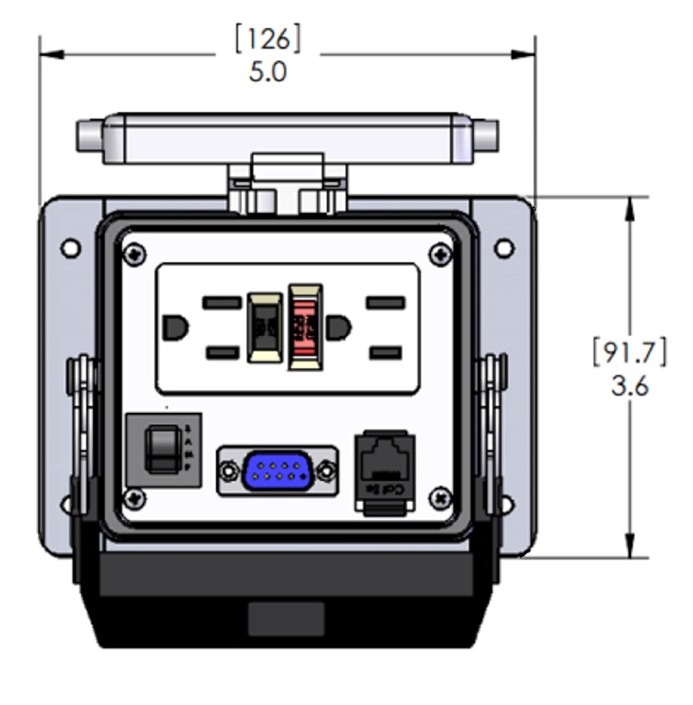

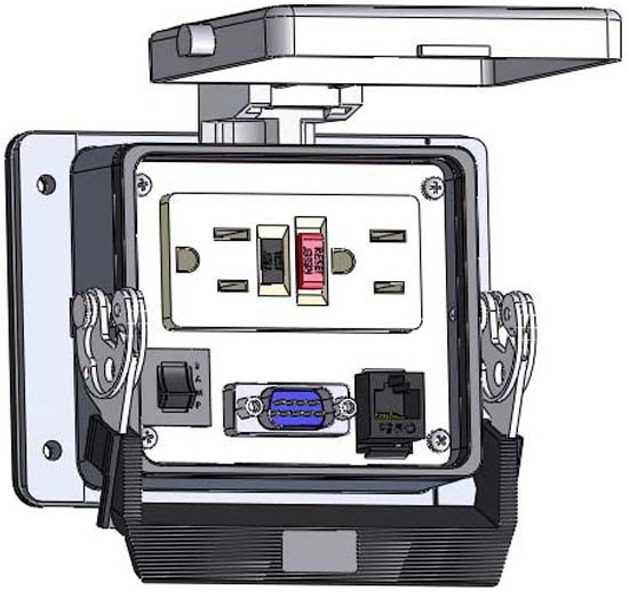

Mencom Panel Interface Connectors (PIC) attach to the exterior of the control panel, allowing the user to access the PLC or PAC without opening the control cabinet. The Mencom GF-DB9M-RJ45-R-32 PIC features a 120V GFCI Duplex Receptacle, a male 9 Pin D-Sub, RJ45 port and a 3 amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Volts- 125 V
- Amps- 3 Amps
- SCCR- 10kA
- Housing- Size 32 Bulkhead Housing
- Power Ports- 120V GFCI Duplex Receptacle
- D-Sub- Male 9 Pin D-Sub
- RJ / Ethernet- RJ45
- Fuse- 3 Amp resettable
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Approvals- UL & CUL Recognized
|
|
|
 |
|
 |
|
