Mencom Panel Interface Connector, GFCI Duplex outlet, RJ45, USB, 3A Reset - 6 Foot


Mencom GF-RJ45-USB-06-R-32 Panel Interface Connector
Mencom GF-RJ45-USB-06-R-32 Panel Interface Connector, GFCI Duplex outlet, RJ45, USB, 3A Reset - 6 Foot

Alternative Views:


Price: $247.22
Note: Delivery: Up to 7-10 business days
MFG P/N: GF-RJ45-USB-06-R-32
MFG: Mencom
Weight (lbs): 2

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: GF-RJ45-USB-06-R-32
Qty:


Description

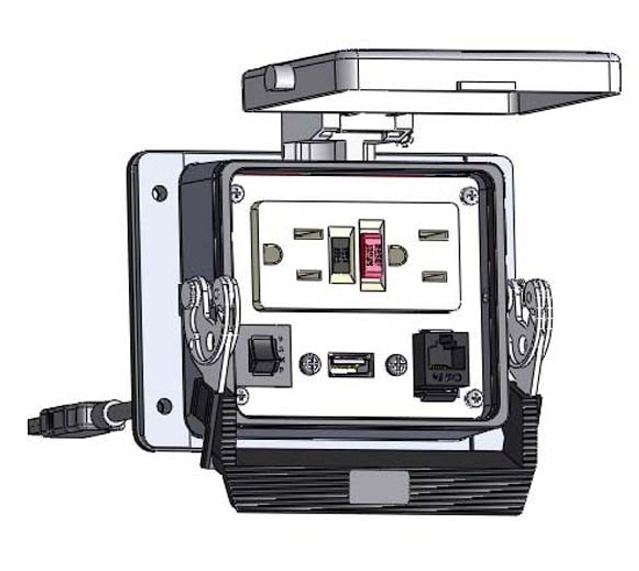

Mencom Panel Interface Connectors (PIC) attach to the exterior of the control panel to allow access to the PLC or PAC without having to open the control cabinet. The Mencom GF-RJ45-USB-06-R-32 PIC features a 120V GFCI Duplex Receptacle, an RJ45 port, Type A 6 foot USB connector cable, and a 3 amp resettable fuse in a size 32 housing. Cable is Form A female to Form A male. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.

Specifications

  • Body- Epoxy coated die cast aluminum
  • Gasket- Thermoplastic elastomer
  • Handle- Polyamide
  • Levers- Stainless Steel
  • Volts- 125 V
  • Amps- 3 Amps
  • SCCR- 10kA
  • Housing- Size 32 Bulkhead Housing
  • Power Ports- 120V GFCI Duplex Receptacle
  • RJ / Ethernet- RJ45
  • USB- 6 Foot Form A Female to Form A Male
  • Resets- 3 Amp Reset
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Approvals- UL & CUL Recognized

Mencom Panel Interface Connector Part Number Guide

Mencom Panel Interface Connector Guide
