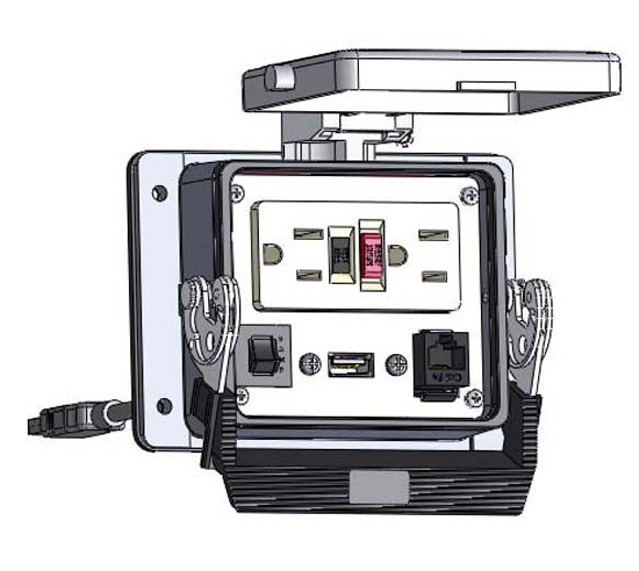

Mencom Panel Interface Connectors (PIC) attach to the exterior of the control panel, allowing access to the PLC or PAC without needing to open the panel door. The Mencom GF-RJ45-USB-03-R-32 PIC has a 120V GFCI Duplex Receptacle, an RJ45 port, Type A 3 foot USB connector cable, and a 3 amp resettable fuse in a size 32 housing. Cable is Form A female to Form A male. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Volts- 125 V
- Amps- 3 Amps
- SCCR- 10kA
- Housing- Size 32 Bulkhead Housing
- Power Ports- 120V GFCI Duplex Receptacle
- RJ / Ethernet- RJ45
- USB- 3 Foot Form A Female to Form A Male
- Resets- 3 Amp Reset
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Approvals- UL & CUL Recognized
|
|
|
 |
|
 |
|
