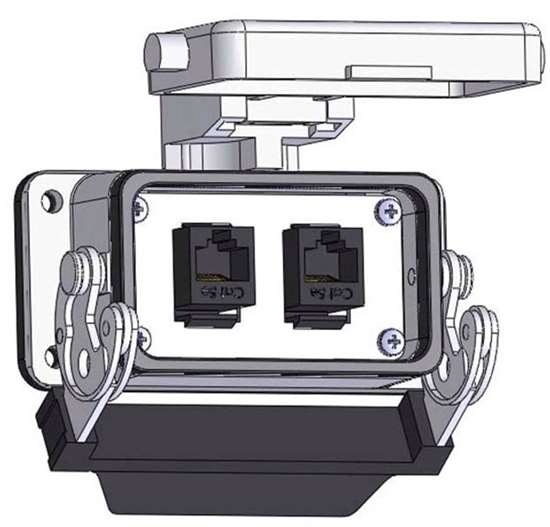

Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom RJ45-2-10LS PIC features two female/female ethernets in a size 10 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Housing- Size 10 Bulkhead Housing
- RJ / Ethernet- Ethernet Female / Female
|
|
|
 |
|
 |
|
