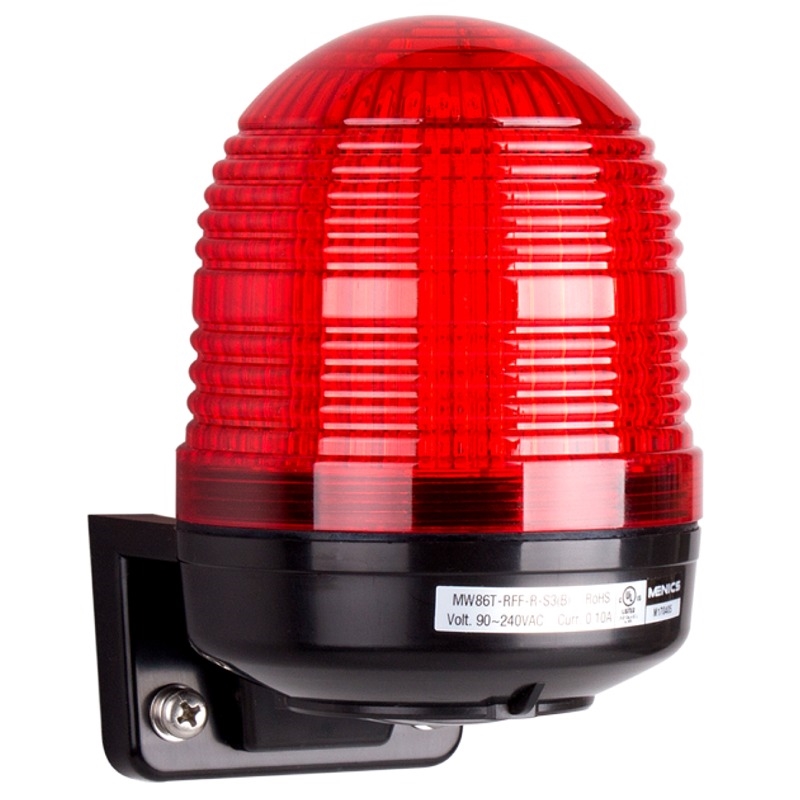

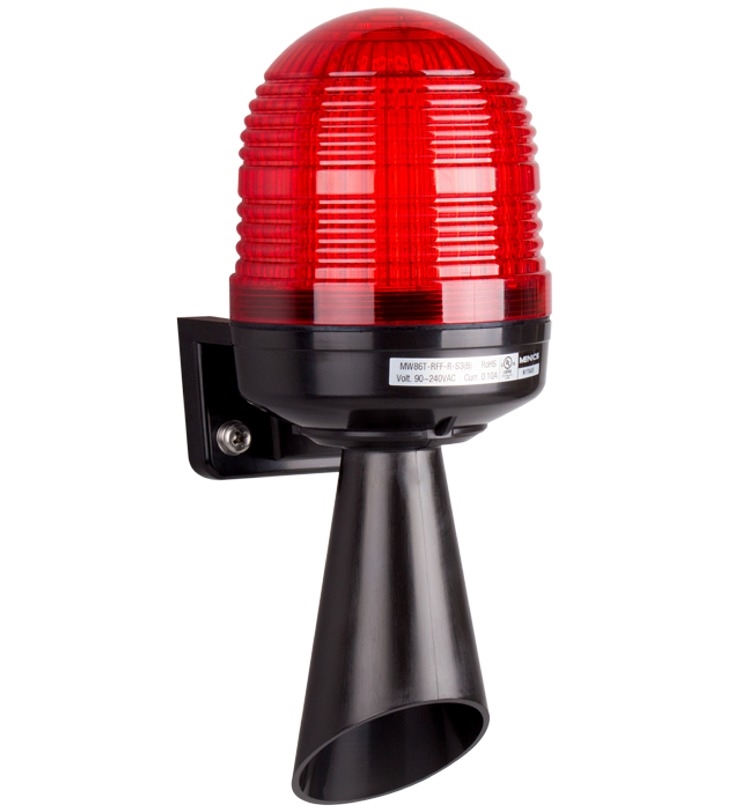

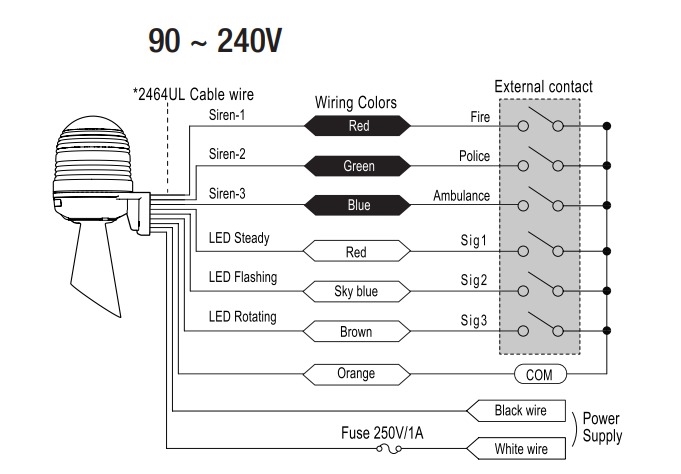

The Menics MW86T-RFF-R-S3B 86 mm wall mount beacon light is 90-240V with a red lens. Steady, flashing, & rotating high intensity LED light. Plays one of three siren sounds, depending on the wiring. Flashing modes chosen by selector switch and volume & rotation rate are adjustable (see diagram). Comes with removable black horn attachment.
Specifications
- Mounting- Wall Mount
- Light Type- High Intensity LED Steady/Flashing/Rotating
- Power Supply- 90-240V AC
- Wiring Method- Lead Wire Connection
- Lens- Red Polycarbonate
- Housing- Black ABS Plastic
- Sound Type- 3 Siren (Fire Truck, Police Car, Ambulance) - See below for 3 melody version

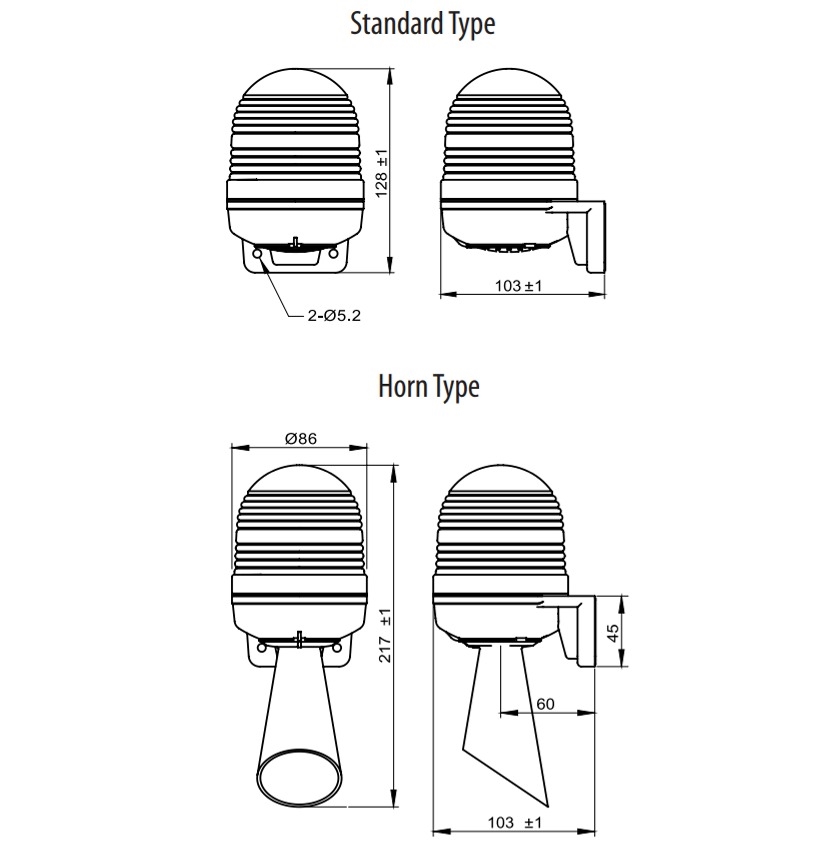

- Dimensions- Without Horn: 128 mm Height x 103 mm Length x 86 mm Width (5.04" x 4.06" x 3.4"), With Horn: 217 mm Height x 103 mm Length x 86 mm Width (8.54" x 4.06" x 3.4")
- Current Consumption- Max 0.1 Amps (Light), Max 0.06 Amps (Sound)
- Brightness- 36 Lumens, 2870 mcd
- Flash Rate- 80 times per minute or 240 times per minute
- Rotation Rate- 60 - 300 rotations per minute
- Volume- 55-85 decibels (without Horn), 55-90 decibels (with Horn)
- Insulation Resistance- 100 MOhm min (500V DC mega)
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- UL 1007 / 22 AWG
- IP Protection- Without Horn: IP 43 (Protected from particles larger than 1 mm and sprayed water up to 60 degrees from vertical), With Horn: IP 54 (Protection from harmful dust deposits & splashing water in any direction)
- Approvals- RoHS, UL
|
|
|
 |
|
 |
|
